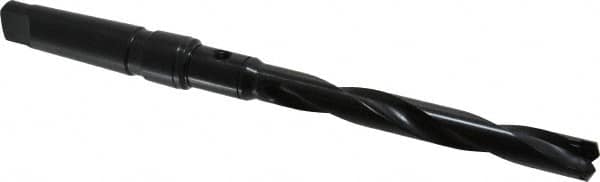

Allied Machine and Engineering - Series 1.5, 55/64 to 15/16" Diam, 4MT Taper Shank, Helical Flute Spade Drill - 6-3/4" Max Depth, 9-43/64" Body Length, 14-5/32" OAL, Standard Length, Through Coolant
Item #: 08074031
Brand: Allied Machine and Engineering
Model #: 24015H-004I
Exact Tooling IR#: 04
Features and Benefits
Helical flutes are used for vertical machining center applications.
| Product Specifications | |
|---|---|
| Series | 1.5 |
| Minimum Drill Diameter (Inch) | 55/64 |
| Maximum Drill Diameter (Inch) | 15/16 |
| Shank Type | Taper Shank |
| Shank Taper Size | 4MT |
| Spade Drill Length | Standard Length |
| Overall Length (Inch) | 14-5/32 |
| Maximum Drill Depth (Inch) | 6-3/4 |
| Flute Type | Helical Flute |
| Flute Length (Inch) | 7-7/8 |
| Body Length (Inch) | 9-43/64 |
| Through Coolant | Yes |
| Rotary Coolant Adapter Compatibility | 2T-3SR |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8 |
