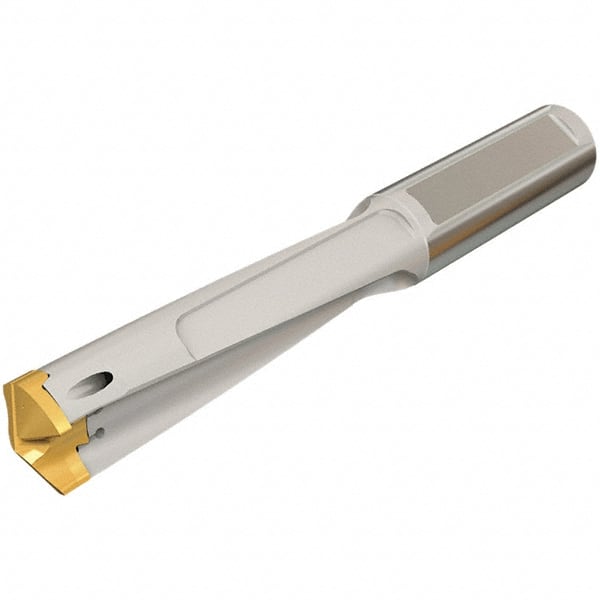

Iscar - 11.5 to 11.9mm Diam, 3.5xD, 38mm Max Depth, 12mm Shank Diam, 91.6mm OAL, Replaceable Tip Drill - IDI-SG, IDI-SK Insert, 11 Seat Size, DCM Toolholder, Series UniChamDrill
Item #: 08089013
Brand: Iscar
Model #: 3200976
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | UniChamDrill |
| Minimum Drill Diameter (mm) | 11.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.4528 |
| Maximum Drill Diameter (mm) | 11.90 |
| Maximum Drill Diameter (Decimal Inch) | 0.4685 |
| Drill Depth by Diameter Ratio | 3.5xD |
| Maximum Drill Depth (Decimal Inch) | 1.4961 |
| Maximum Drill Depth (mm) | 38.00 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Insert Style | IDI-SG; IDI-SK |
| Insert Seat Size | 11 |
| Toolholder Style | DCM |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 48.60 |
| Body Length (Decimal Inch) | 1.9134 |
| Overall Length (mm) | 91.60 |
| Overall Length (Decimal Inch) | 3.6063 |
| Shank Length (mm) | 43.00 |
| Shank Length (Decimal Inch) | 1.6929 |
