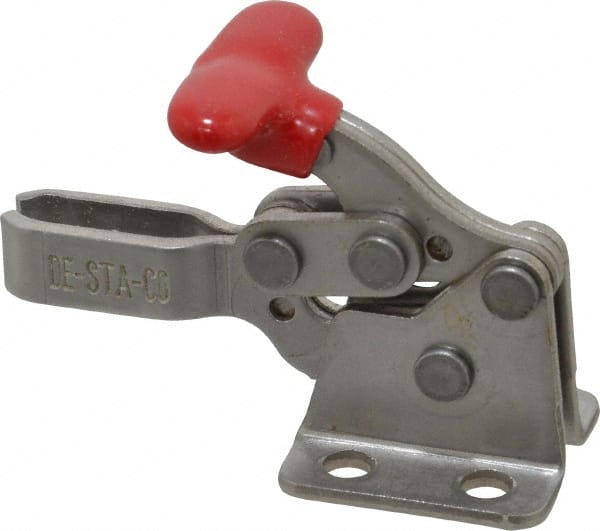

De-Sta-Co - 200 Lb Holding Capacity, Horizontal Handle, Manual Hold Down Toggle Clamp - 170° Handle Movement, 90° Bar Opening, U-Bar, Flanged Base, Electro-Plated Zinc, Stainless Steel
Item #: 08096356
Brand: De-Sta-Co
Model #: 305-USS
Exact Tooling IR#: 04
Features and Benefits
Horizontal handles are designed with a handle that is parallel to the clamping bar and a lower height profile for better overhead clearance during operations. They are manufactured with holding capacities of up to 2,400 pounds.
U-shaped bars are designed for spindle adjustments along the length of the holding bar. This enables the user to adjust the clamp for various sized workpieces.
Stainless steel has a higher heat tolerance and a higher resistance to corrosion than carbon steel, allowing use at higher temperatures. Can be used where a non-magnetic clamp is required.
| Product Specifications | |
|---|---|
| Handle Orientation | Horizontal |
| Bar Style | U-Bar |
| Base Style | Flanged |
| Bar End Type | Fixed Spindle |
| Holding Capacity (N) | 890.00 |
| Holding Capacity (Lb.) | 200.00 |
| Length Distance Between Mount Holes (mm) | 13.46 |
| Length Distance Between Mount Holes (Decimal Inch) | 0.53 |
| Width Distance Between Mount Holes (mm) | 16.00 |
| Width Distance Between Mount Holes (Decimal Inch) | 0.6300 |
| Height Under Bar (mm) | 12.19 |
| Height Under Bar (Decimal Inch) | 0.4800 |
| Overall Length (mm) | 56.13 |
| Overall Length (Decimal Inch) | 2.2100 |
| Overall Height (mm) | 36.32 |
| Overall Height (Decimal Inch) | 1.4300 |
| Base Length (mm) | 25.91 |
| Base Length (Decimal Inch) | 1.0200 |
| Base Width (mm) | 25.40 |
| Base Width (Decimal Inch) | 1.0000 |
| Handle Style | T-Handle |
| Material | Stainless Steel |
| Handle Color | Red |
| Finish/Coating | Electro-Plated Zinc |
| Number of Mounting Holes | 4 |
| Mounting Hole Diameter (mm) | 4.57 |
| Mounting Hole Diameter (Decimal Inch) | 0.1800 |
| Front of Base To Tip Of Toggle Bar (mm) | 30.23 |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 1.1900 |
| Bar Opening (Degrees) | 90.00 |
| Handle Movement (Degrees) | 170.00 |
| Maximum Mechanical Advantage | 2:1; 3:1 |
| Spindle Thread Size | 10-32 |
| Spindle Length (Decimal Inch) | 1.1300 |
| Spindle Travel (mm) | 12.70 |
| Spindle Travel (Decimal Inch) | 0.5000 |
| Bar Width (Decimal Inch) | 0.3100 |
| Bar Width (mm) | 7.87 |
| Handle Width (Decimal Inch) | 1.0600 |
| Includes | (1) Spindle; (2) Nuts; (2) Washers |
