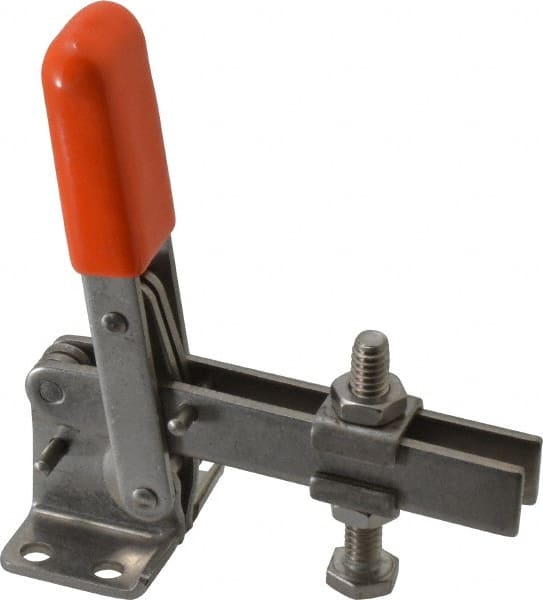

Lapeer - 100 Lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp - 63° Handle Movement, 95° Bar Opening, U-Bar, Flanged Base, Stainless Steel
Item #: 08106627
Brand: Lapeer
Model #: V-100(SS)
Exact Tooling IR#: 04
Features and Benefits
Vertical handles are designed with a handle that is 90 degrees, or perpendicular to the clamping bar. They are manufactured with holding capacities of up to 6,000 pounds.
U-shaped bars are designed for spindle adjustments along the length of the holding bar. This enables the user to adjust the clamp for various sized workpieces.
Stainless steel has a higher heat tolerance and a higher resistance to corrosion than carbon steel, allowing use at higher temperatures. Can be used where a non-magnetic clamp is required.
| Product Specifications | |
|---|---|
| Handle Orientation | Vertical |
| Bar Style | U-Bar |
| Base Style | Flanged |
| Bar End Type | Open |
| Holding Capacity (Lb.) | 100.00 |
| Length Distance Between Mount Holes (mm) | 12.70 |
| Length Distance Between Mount Holes (Inch) | 1/2 |
| Length Distance Between Mount Holes (Decimal Inch) | 0.5 |
| Width Distance Between Mount Holes (mm) | 26.99 |
| Width Distance Between Mount Holes (Inch) | 1-1/16 |
| Width Distance Between Mount Holes (Decimal Inch) | 1.0625 |
| Height Under Bar (mm) | 22.23 |
| Height Under Bar (Inch) | 7/8 |
| Height Under Bar (Decimal Inch) | 0.8750 |
| Overall Length (mm) | 84.93 |
| Overall Length (Inch) | 3.3438 |
| Overall Length (Decimal Inch) | 3.3438 |
| Overall Height (mm) | 95.25 |
| Overall Height (Inch) | 3-3/4 |
| Overall Height (Decimal Inch) | 3.7500 |
| Base Length (mm) | 26.99 |
| Base Length (Inch) | 1-1/16 |
| Base Length (Decimal Inch) | 1.0625 |
| Base Width (mm) | 36.51 |
| Base Width (Inch) | 1-7/16 |
| Base Width (Decimal Inch) | 1.4375 |
| Handle Style | Straight |
| Material | Stainless Steel |
| Handle Color | Orange |
| Number of Mounting Holes | 4 |
| Mounting Hole Diameter (mm) | 5.16 |
| Mounting Hole Diameter (Decimal Inch) | 0.2030 |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 2.0000 |
| Bar Opening (Degrees) | 95.00 |
| Handle Movement (Degrees) | 63.00 |
| Spindle Thread Size | 1/4-20 |
| Spindle Length (Inch) | 1-7/8 |
| Spindle Travel (mm) | 31.75 |
| Spindle Travel (Inch) | 1-1/4 |
| Spindle Travel (Decimal Inch) | 1.2500 |
| Bar Width (Decimal Inch) | 0.2500 |
| Bar Width (mm) | 6.35 |
| Bar Width (Inch) | 1/4 |
| Bar Thickness (Decimal Inch) | 0.8800 |
| Includes | (2) Flanged Washers; (2) Nuts; Spindle |
