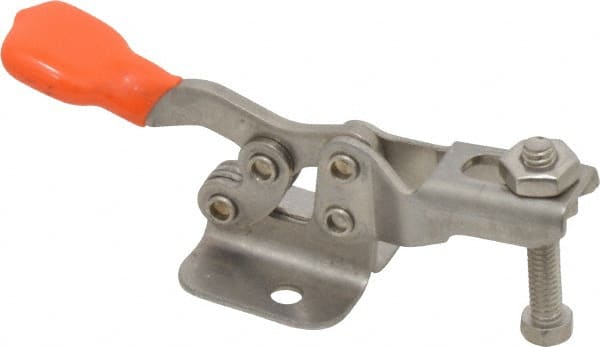

Lapeer - 100 Lb Holding Capacity, Horizontal Handle, Manual Hold Down Toggle Clamp - 85° Handle Movement, 95° Bar Opening, U-Bar, Flanged Base, Stainless Steel
Item #: 08106700
Brand: Lapeer
Model #: H-100(SS)
Exact Tooling IR#: 04
Features and Benefits
Horizontal handles are designed with a handle that is parallel to the clamping bar and a lower height profile for better overhead clearance during operations. They are manufactured with holding capacities of up to 2,400 pounds.
U-shaped bars are designed for spindle adjustments along the length of the holding bar. This enables the user to adjust the clamp for various sized workpieces.
Stainless steel has a higher heat tolerance and a higher resistance to corrosion than carbon steel, allowing use at higher temperatures. Can be used where a non-magnetic clamp is required.
| Product Specifications | |
|---|---|
| Handle Orientation | Horizontal |
| Bar Style | U-Bar |
| Base Style | Flanged |
| Bar End Type | Open |
| Holding Capacity (Lb.) | 100.00 |
| Holding Capacity (kg) | 45.36 |
| Width Distance Between Mount Holes (mm) | 15.88 |
| Width Distance Between Mount Holes (Inch) | 5/8 |
| Width Distance Between Mount Holes (Decimal Inch) | 0.6250 |
| Height Under Bar (mm) | 19.05 |
| Height Under Bar (Inch) | 3/4 |
| Height Under Bar (Decimal Inch) | 0.7500 |
| Overall Length (mm) | 73.03 |
| Overall Length (Inch) | 2-7/8 |
| Overall Length (Decimal Inch) | 2.8750 |
| Overall Height (mm) | 23.81 |
| Overall Height (Inch) | 15/16 |
| Overall Height (Decimal Inch) | 0.9375 |
| Base Length (Decimal Inch) | 0.8800 |
| Base Width (mm) | 26.99 |
| Base Width (Inch) | 1-1/16 |
| Base Width (Decimal Inch) | 1.0625 |
| Handle Style | Straight |
| Material | Stainless Steel |
| Handle Color | Orange |
| Number of Mounting Holes | 2 |
| Mounting Hole Diameter (mm) | 3.96 |
| Mounting Hole Diameter (Decimal Inch) | 0.1560 |
| Front of Base To Tip Of Toggle Bar (mm) | 22.23 |
| Front of Base To Tip Of Toggle Bar (Inch) | 7/8 |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 0.8750 |
| Bar Opening (Degrees) | 95.00 |
| Handle Movement (Degrees) | 85.00 |
| Spindle Thread Size | 8-32 |
| Spindle Length (Decimal Inch) | 1.0900 |
| Spindle Travel (mm) | 7.94 |
| Spindle Travel (Inch) | 5/16 |
| Spindle Travel (Decimal Inch) | 0.3125 |
| Bar Width (Decimal Inch) | 0.4688 |
| Bar Width (mm) | 11.91 |
| Bar Width (Inch) | 15/32 |
| Bar Thickness (Decimal Inch) | 0.7500 |
| Handle Width (Decimal Inch) | 0.5000 |
| Includes | Spindle Assembly |
