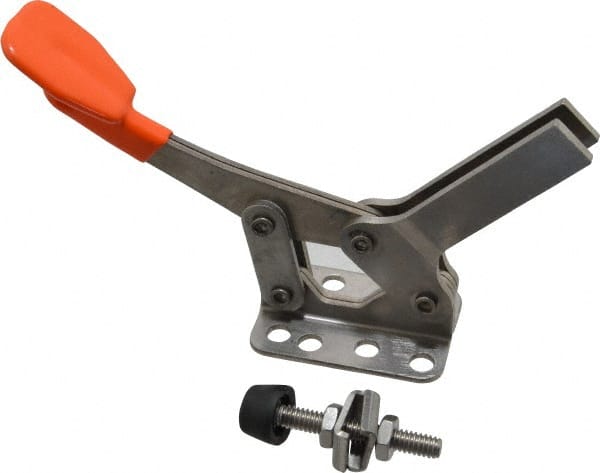

Lapeer - 400 Lb Holding Capacity, Horizontal Handle, Manual Hold Down Toggle Clamp - 85° Handle Movement, 95° Bar Opening, U-Bar, Flanged Base, Stainless Steel
Item #: 08106734
Brand: Lapeer
Model #: H-400(SS)
Exact Tooling IR#: 04
Features and Benefits
Horizontal handles are designed with a handle that is parallel to the clamping bar and a lower height profile for better overhead clearance during operations. They are manufactured with holding capacities of up to 2,400 pounds.
U-shaped bars are designed for spindle adjustments along the length of the holding bar. This enables the user to adjust the clamp for various sized workpieces.
Stainless steel has a higher heat tolerance and a higher resistance to corrosion than carbon steel, allowing use at higher temperatures. Can be used where a non-magnetic clamp is required.
| Product Specifications | |
|---|---|
| Handle Orientation | Horizontal |
| Bar Style | U-Bar |
| Base Style | Flanged |
| Bar End Type | Open |
| Holding Capacity (Lb.) | 400.00 |
| Holding Capacity (kg) | 181.44 |
| Length Distance Between Mount Holes (mm) | 22.00; 25.40; 31.80 |
| Length Distance Between Mount Holes (Inch) | 7/8; 1-1/4 |
| Length Distance Between Mount Holes (Decimal Inch) | 1.0 |
| Width Distance Between Mount Holes (mm) | 22.23 |
| Width Distance Between Mount Holes (Inch) | 7/8 |
| Height Under Bar (mm) | 28.58 |
| Height Under Bar (Inch) | 1-1/8 |
| Height Under Bar (Decimal Inch) | 1.1250 |
| Overall Length (mm) | 173.04 |
| Overall Length (Inch) | 6-13/16 |
| Overall Length (Decimal Inch) | 6.8125 |
| Overall Height (mm) | 57.94 |
| Overall Height (Inch) | 2.2813 |
| Overall Height (Decimal Inch) | 2.2813 |
| Base Length (mm) | 55.56 |
| Base Length (Inch) | 2-3/16 |
| Base Length (Decimal Inch) | 2.1875 |
| Base Width (mm) | 38.10 |
| Base Width (Inch) | 1-1/2 |
| Base Width (Decimal Inch) | 1.5000 |
| Handle Style | Straight |
| Material | Stainless Steel |
| Handle Color | Orange |
| Number of Mounting Holes | 4 |
| Mounting Hole Diameter (mm) | 6.76 |
| Mounting Hole Diameter (Decimal Inch) | 0.2660 |
| Front of Base To Tip Of Toggle Bar (mm) | 53.98 |
| Front of Base To Tip Of Toggle Bar (Inch) | 2-1/8 |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 2.1250 |
| Bar Opening (Degrees) | 95.00 |
| Handle Movement (Degrees) | 85.00 |
| Spindle Thread Size | 1/4-20 |
| Spindle Length (Decimal Inch) | 1.8800 |
| Spindle Travel (mm) | 33.34 |
| Spindle Travel (Inch) | 1-5/16 |
| Spindle Travel (Decimal Inch) | 1.3125 |
| Bar Width (Decimal Inch) | 0.2500 |
| Bar Width (mm) | 6.35 |
| Bar Width (Inch) | 1/4 |
| Bar Thickness (Decimal Inch) | 1.1300 |
| Handle Width (Decimal Inch) | 1.0000 |
| Includes | Spindle Assembly; Spindle Cap |
