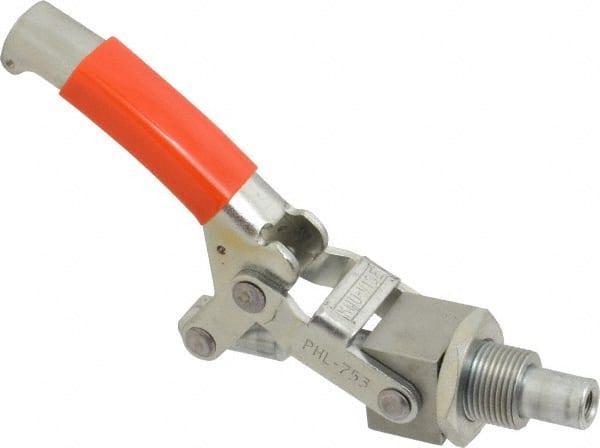

Lapeer - 750 Lb Load Capacity, Mounting Plate Base, Carbon Steel, Standard Straight Line Action Clamp - 5/8" Plunger Diam, Straight Handle
Item #: 08106775
Brand: Lapeer
Model #: PHL-753
Exact Tooling IR#: 04
Features and Benefits
Carbon steel offers strength and rigidity during an application. It does not resist corrosion as well as stainless steel.
| Product Specifications | |
|---|---|
| Load Capacity (Lb.) | 750.00 |
| Load Capacity (kg) | 340.19 |
| Plunger Travel (mm) | 66.68 |
| Plunger Travel (Decimal Inch) | 2.6250 |
| Plunger Travel (Inch) | 2-5/8 |
| Plunger Shape | Round |
| Plunger Thread Style | Internal |
| Plunger Thread Size | 3/8-16 |
| Plunger Diameter (Inch) | 5/8 |
| Plunger Diameter (Decimal Inch) | 0.6250 |
| Plunger Diameter (mm) | 15.88 |
| Base Style | Mounting Plate |
| Handle Style | Straight |
| Material | Carbon Steel |
| Overall Length (Decimal Inch) | 7.1250 |
| Overall Height (Decimal Inch) | 4.7813 |
| Handle Color | Orange |
| Overall Length (mm) | 180.98 |
| Overall Length (Inch) | 7-1/8 |
| Overall Height (Inch) | 4-25/32 |
| Overall Height (mm) | 121.44 |
| Jam Nut Height (mm) | 6.35 |
| Jam Nut Height (Inch) | 1/4 |
| Jam Nut Height (Decimal Inch) | 0.2500 |
| Jam Nut Hex Size (mm) | 38.10 |
| Jam Nut Hex Size (Decimal Inch) | 1.5000 |
| Jam Nut Hex Size (Inch) | 1-1/2 |
| Jam Nut Thread Size | 1-14 |
| Includes | Jam Nut |
