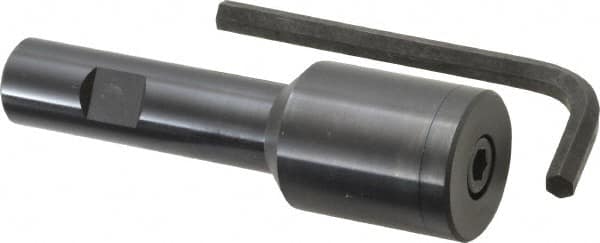

RobbJack - Slitting/Slotting Saw Arbor - Straight Shank, 1/4" Shank Diam, 4" OAL, For 7/8" Cutter Hole Diam
Item #: 08270563
Brand: RobbJack
Model #: AB-875
Exact Tooling IR#: 04
Features and Benefits
Slitting/Slotting saw arbors are used for thin slitting and slotting saws. They are ground to precision tolerances.
| Product Specifications | |
|---|---|
| Type | Slitting/Slotting Saw Arbor |
| Milling Arbor Style | Saw Arbor |
| Shank Type | Straight Shank |
| Arbor Diameter (Inch) | 7/8 |
| Arbor Diameter (Decimal Inch) | 0.8750 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| For Cutter Hole Diameter (Inch) | 7/8 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Projection (Decimal Inch) | 1/4 |
| Head Diameter (Inch) | 1-1/4 |
| Drawbar Thread Size | 5/16-18 |
| Includes | Hex Key |
| Tolerance (Decimal Inch) | -0.0001/-0.0003 (Shank Diameter); -0.0002 (Cap Diameter); 0.0001/0.0003 (Inside Diameter); 0.003 (Flange Diameter); 0.060 (Cap Length); 0.060 (Cap Thickness); 0.060 (Overall Length) |
