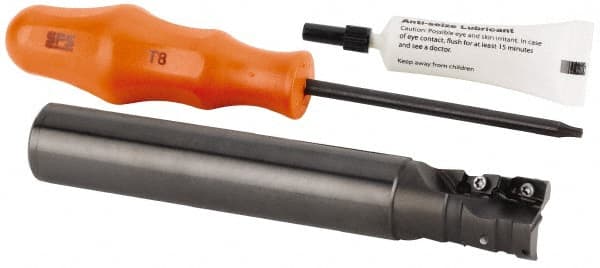

Kennametal - 32mm Cut Diam, 36mm Max Depth of Cut, 32mm Shank Diam, 110mm OAL, Indexable Square Shoulder Helical End Mill - GOMT 1604.., JOMT 1604.. Inserts, Weldon Shank, 0° Lead Angle, Series KDMR
Item #: 08290504
Brand: Kennametal
Model #: 3587071
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Overall Length/Projection (mm) | 110.00 |
| Overall Length/Projection (Decimal Inch) | 4.3307 |
| Lead Angle | 0 |
| Series | KDMR |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 36.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.4173 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | KDMR |
| Number of Flutes | 2 |
| Head Length (mm) | 50.00 |
| Head Length (Decimal Inch) | 1.9685 |
| Weldon Flat | Yes |
| Insert Compatibility | GOMT 1604..; JOMT 1604.. |
| Shank Length (Decimal Inch) | 2.3622 |
| Shank Length (mm) | 60.00 |
