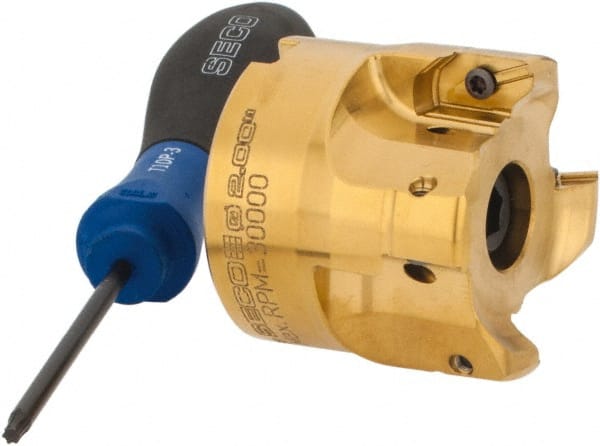

Seco - 2" Cut Diam, 0.295" Max Depth, 3/4" Arbor Hole, 4 Inserts, XPKX12 Insert Style, Indexable Copy Face Mill - R220.97-12 Cutter Style, 30,000 Max RPM, 1.77" High, Through Coolant, Series R220
Item #: 08297657
Brand: Seco
Model #: 19592
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.2950 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Overall Height (Decimal Inch) | 1.7700 |
| Series | R220 |
| Number of Cutter Inserts | 4 |
| Insert Compatibility | XPKX12 |
| Cutter Style | R220.97-12 |
| Through Coolant | Yes |
| Maximum RPM | 30000 |
| Insert Holding Method | Screw |
| Keyway Width (Decimal Inch) | 0.3200 |
| Cutting Direction | Right Hand |
| Counterbore Diameter (Decimal Inch) | 0.7500 |
| Complete Insert Compatibility | XPKX12 |
