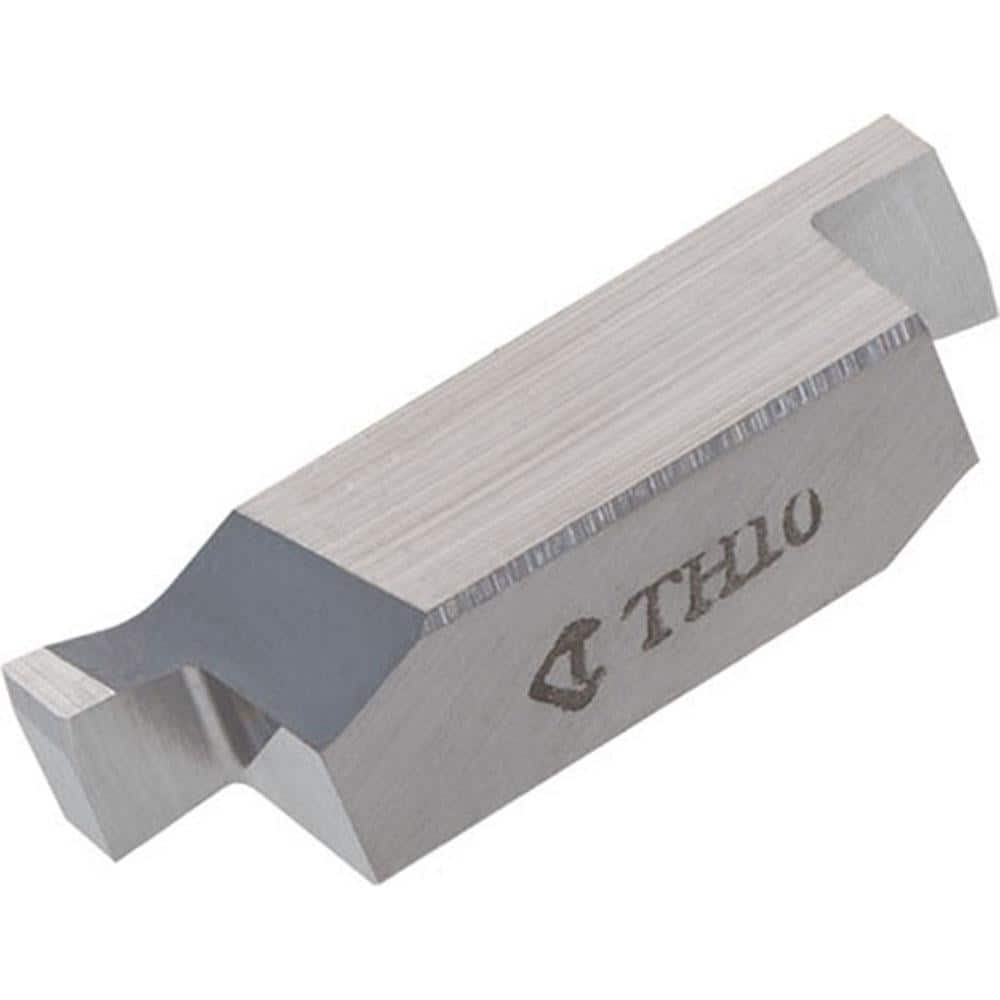

Grooving Insert: GIR NS9530, Cermet Uncoated, Right Hand, 0.098″ Cutting Width, Series GIR
Item #: 08300436
Brand: Tungaloy
Model #: 6705567
Product Specifications
| Insert Style | GIR |
| Insert Size Code | 2.5 |
| Insert Material | Cermet |
| Manufacturer Grade | NS9530 |
| Cutting Width (Decimal Inch) | 0.0980 |
| Insert Holding Method | Clamp |
| Insert Hand | Right Hand |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.1000 to 0.1500 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Lead Angle | 90 |
| Rake | Positive |
| Multi-use Tool | No |
| Cutting Tool Application | Grooving |
| Series | GIR |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Coating/Finish | Uncoated |
