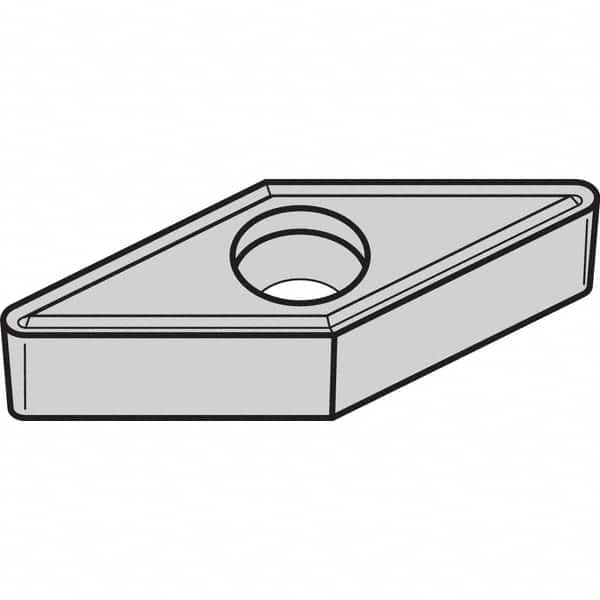

Kennametal - VBMT331 LF Grade KCP30 Carbide Turning Insert - TiCN/Al2O3 Finish, 35° Diamond, 3/8" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 08338717
Brand: Kennametal
Model #: 3753760
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VBMT |
| Insert Size | 331 |
| Material | Carbide |
| Length (mm) | 16.61 |
| Length (Decimal Inch) | 0.6539 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | KCP30 |
| Coating | TiCN/Al2O3 |
| Material Grade | C5/C6 |
| Chip Breaker | LF |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Rake | Positive |
| Rake Angle | 5 |
| Relief Angle | 5 |
| Coating Process | CVD |
| Included Angle | 35 |
| Series | Screw-On |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Screw |
| Shape | Diamond |
