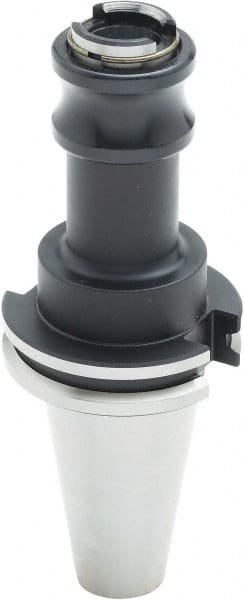

Parlec - CAT50 Taper Shank Rigid Tapping Adapter - #0 to 9/16" Tap Capacity, 3.15" Projection, Size 1 Adapter, Quick Change, Through Coolant
Item #: 08379547
Brand: Parlec
Model #: C50-10TR3C
Exact Tooling IR#: 04
Features and Benefits
Rigid or solid tapping styles are used for general purpose CNC machining. The rigid tapping cycle synchronizes the machine and spindle rotation to match a specific thread pitch. It is used at higher speeds, but does not compensate for length during the taping cycle.
Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Rigid |
| Shank Type | Taper Shank |
| Taper Size | CAT50 |
| Minimum Tap Capacity (Inch) | #0 |
| Maximum Tap Capacity (Inch) | 9/16 |
| Maximum Tap Capacity (Decimal Inch) | 0.5625 |
| Projection (Decimal Inch) | 3.1500 |
| Quick Change | Yes |
| Adapter Size | 1 |
| Nose Diameter (Decimal Inch) | 1.3900 |
| Overall Length (Decimal Inch) | 7.1500 |
| Through Coolant | Yes |
