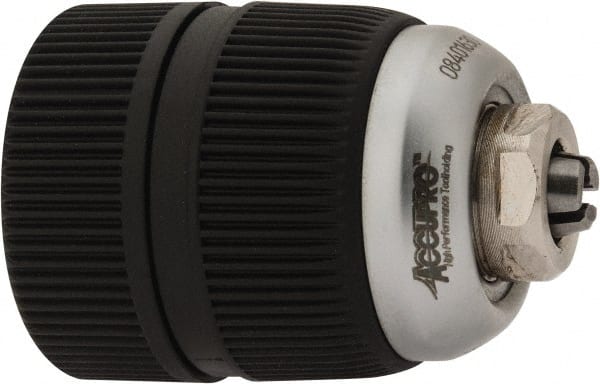

Accupro - 1/2-20, 1/32 to 3/8" Capacity, Threaded Mount Drill Chuck - Keyless, 41mm Sleeve Diam, 57mm Open Length
Item #: 08401630
Brand: Accupro
Exact Tooling IR#: 04
Features and Benefits
Threaded mount drill chucks have an internal thread for securing to a power drill spindle or a threaded arbor.
Keyless chucks are engineered to quickly loosen and tighten a tool on the chuck collar of the drill, either by manual operation or when torque is applied. Rotating the chuck collar in a counterclockwise direction will loosen the tool.
Ball bearings are designed to reduce friction in the tightening mechanism and provide a better grip on the drill. They are used for heavy-duty machining and require a key for tightening or loosening.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Maximum Drill Chuck Capacity (mm) | 9.53 |
| Maximum Drill Chuck Capacity (Inch) | 3/8 |
| Minimum Drill Chuck Capacity (mm) | 0.79 |
| Minimum Drill Chuck Capacity (Inch) | 1/32 |
| Minimum Drill Chuck Capacity (Decimal Inch) | 0.0313 |
| Mount Type | Threaded Mount |
| Mounting Size | 1/2-20 |
| Key Style | Keyless |
| Bearing Type | Ball Bearing |
| Material | Steel |
| Closed Length (mm) | 65.00 |
| Open Length (mm) | 57.00 |
| Sleeve Diameter (mm) | 41.00 |
