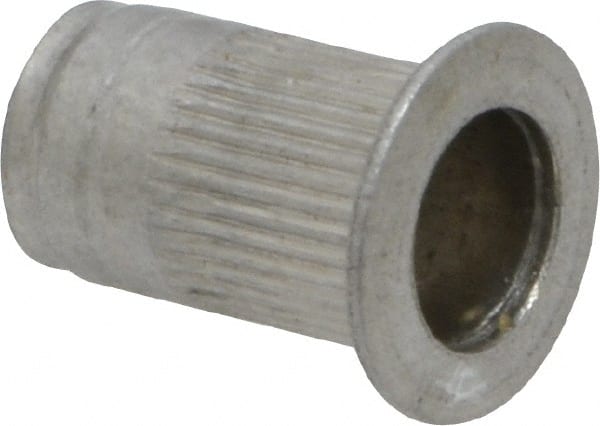

Made in USA - #10-32, 0.296 Insert Diam, 0.475" OAL, Knurled Body Open End Threaded Insert - 0.2969" Hole Diam, 0.415" Head Diam, 5056 Aluminum, Clear Protective Coating
Item #: 08410995
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Knurled body open end inserts have knurls along the outside diameter and are open on both ends.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
| Product Specifications | |
|---|---|
| Type | Knurled Body Open End |
| System of Measurement | Inch |
| Thread Size | #10-32 |
| Overall Length (Decimal Inch) | 0.4750 |
| Insert Diameter (Decimal Inch) | 0.2960 |
| Hole Diameter (Decimal Inch) | 0.2969 |
| Material | Aluminum |
| Head Diameter (Decimal Inch) | 0.4150 |
| Material Grade | 5056 |
| Finish/Coating | Clear Protective Coating |
| Minimum Grip (Decimal Inch) | 0.0200 |
| Maximum Grip (Decimal Inch) | 0.1300 |
| Head Height (Decimal Inch) | 0.0300 |
| Thread Standard | UNF |
