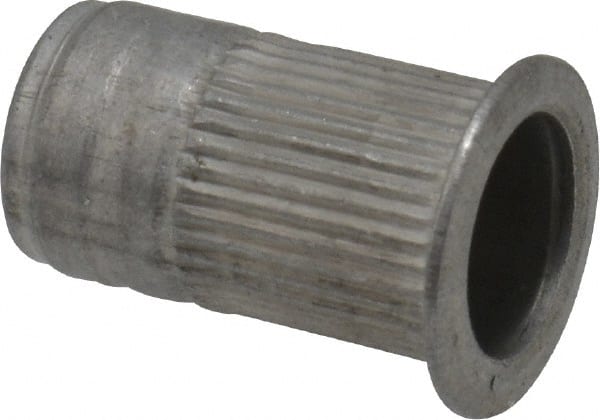

Made in USA - M6x1.00, 9.91mm Insert Diam, 17.27mm OAL, Knurled Body Open End Threaded Insert - 10mm Hole Diam, 12.7mm Head Diam, 5056 Aluminum, Clear Protective Coating
Item #: 08411100
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Knurled body open end inserts have knurls along the outside diameter and are open on both ends.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
| Product Specifications | |
|---|---|
| Type | Knurled Body Open End |
| System of Measurement | Metric |
| Thread Size | M6x1.00 |
| Overall Length (mm) | 17.27 |
| Insert Diameter (mm) | 9.91 |
| Hole Diameter (mm) | 10.00 |
| Material | Aluminum |
| Head Diameter (mm) | 12.70 |
| Material Grade | 5056 |
| Finish/Coating | Clear Protective Coating |
| Minimum Grip (mm) | 4.20 |
| Maximum Grip (mm) | 6.60 |
| Head Height (mm) | 0.76 |
| Drill Size (mm) | 10.00 |
| Thread Standard | Metric Coarse |
