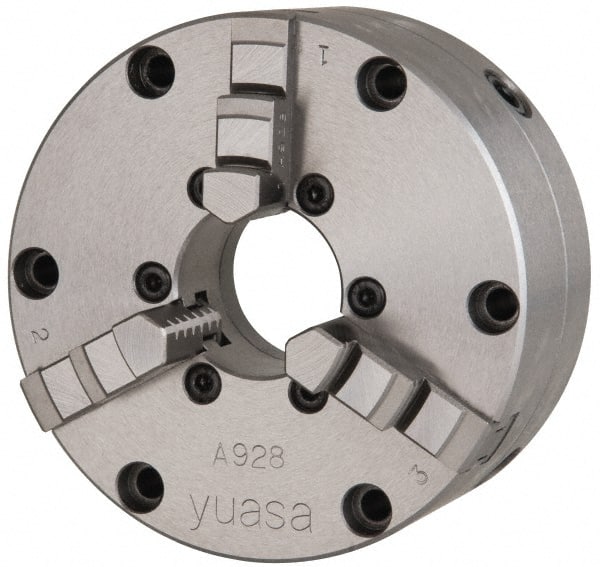

Yuasa - 3 Jaws, 10" Diam, Self Centering Manual Lathe Chuck - Plain Back Mount Spindle, Adjustable, Reversible, 3.5433" Through Hole Diam, 0.0005" Axial Runout, Cast Iron
Item #: 08558108
Brand: Yuasa
Model #: 585-110
Exact Tooling IR#: 04
Features and Benefits
Self-centering scroll chucks are designed with jaws on a scroll which open and close with a wrench that is turned on a pinion. They accurately self-center on the workpiece as the jaws close.
Cast iron also called semi-steel is the industry standard for chuck body material.
| Product Specifications | |
|---|---|
| Chuck Type | Self-Centering |
| Nominal Chuck Size | 10 |
| Number of Jaws | 3 |
| Mount | Plain Back |
| Through-Hole Diameter (mm) | 90.00 |
| Body Material | Cast Iron (Semi-Steel) |
| Reversible Jaws | Reversible Jaws |
| Number of Jaw Pieces | Two-Piece |
| Chuck Diameter (mm) | 273.05 |
| Chuck Diameter (Inch) | 10-3/4 |
| Chuck Diameter (Decimal Inch) | 10.7500 |
| Maximum Jaw Capacity (mm) | 230.00 |
| Maximum Jaw Capacity (Decimal Inch) | 9.0551 |
| Adjustable | Yes |
| Jaw Type | Top Jaws |
| Axial Runout (mm) | 0.01 |
| Axial Runout (Decimal Inch) | 0.0005 |
| Body Length (Decimal Inch) | 3.5800 |
| Body Length (mm) | 90.93 |
| Includes | Top Reversible Jaws |
