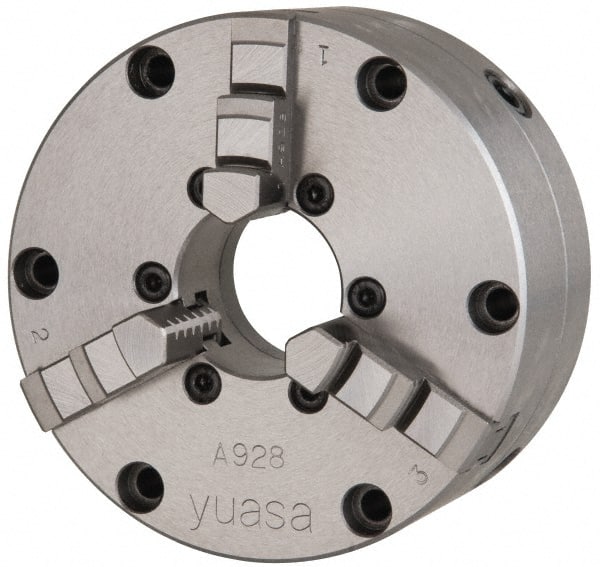

Yuasa - 3 Jaws, 12" Diam, Self Centering Manual Lathe Chuck - Plain Back Mount Spindle, Adjustable, Reversible, 4.3307" Through Hole Diam, 0.0005" Axial Runout, Cast Iron
Item #: 08558124
Brand: Yuasa
Model #: 585112Y
Exact Tooling IR#: 04
Features and Benefits
Self-centering scroll chucks are designed with jaws on a scroll which open and close with a wrench that is turned on a pinion. They accurately self-center on the workpiece as the jaws close.
Cast iron also called semi-steel is the industry standard for chuck body material.
| Product Specifications | |
|---|---|
| Chuck Type | Self-Centering |
| Nominal Chuck Size | 12 |
| Number of Jaws | 3 |
| Mount | Plain Back |
| Through-Hole Diameter (mm) | 110.00 |
| Body Material | Cast Iron (Semi-Steel) |
| Reversible Jaws | Reversible Jaws |
| Number of Jaw Pieces | Two-Piece |
| Chuck Diameter (mm) | 311.15 |
| Chuck Diameter (Inch) | 12-1/4 |
| Chuck Diameter (Decimal Inch) | 12.2500 |
| Maximum Jaw Capacity (mm) | 265.00 |
| Maximum Jaw Capacity (Decimal Inch) | 10.4331 |
| Adjustable | Yes |
| Jaw Type | Top Jaws |
| Axial Runout (mm) | 0.01 |
| Axial Runout (Decimal Inch) | 0.0005 |
| Body Length (Decimal Inch) | 3.7400 |
| Body Length (mm) | 95.00 |
| Includes | Top Reversible Jaws |
