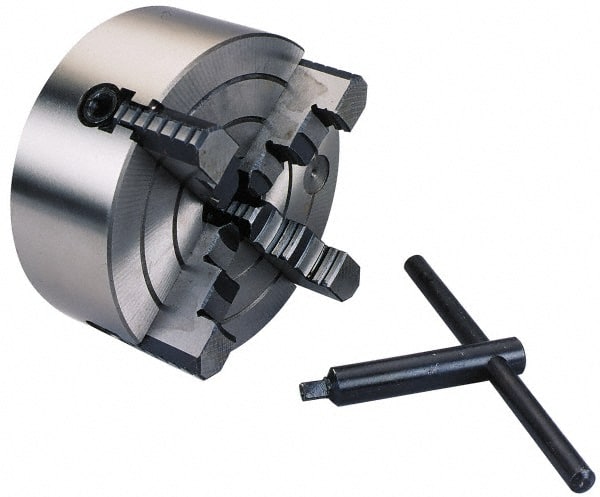

Interstate - 4 Jaws, 16" Diam, Independent Manual Lathe Chuck - Plain Back Mount Spindle, Reversible, 5" Through Hole Diam, Cast Iron
Item #: 08560468
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
Independent chucks are designed with jaws that move independantly of one another.
Cast iron also called semi-steel is the industry standard for chuck body material.
| Product Specifications | |
|---|---|
| Chuck Type | Independent |
| Nominal Chuck Size | 16 |
| Number of Jaws | 4 |
| Mount | Plain Back |
| Through-Hole Diameter (Inch) | 5 |
| Body Material | Cast Iron (Semi-Steel) |
| Reversible Jaws | Reversible Jaws |
| Number of Jaw Pieces | One-Piece |
| Chuck Diameter (Inch) | 16 |
| Jaw Height (Inch) | 1-57/64 |
| Jaw Height (Decimal Inch) | 1.8906 |
| Adjustable | No |
| Jaw Type | Top Jaws |
| Body Length (Inch) | 3-3/4 |
| Body Length (Decimal Inch) | 3.7500 |
| Overall Length (Decimal Inch) | 5.6300 |
| Includes | Solid Reversible Jaws; T-Wrench |
