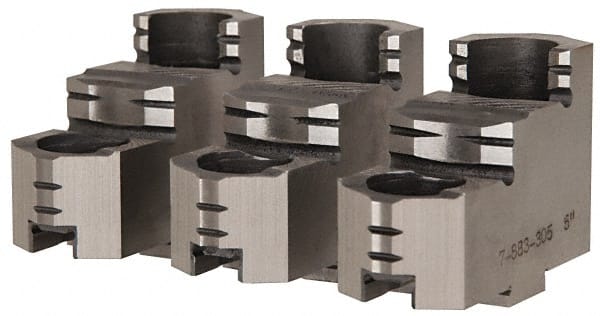

Bison - 6-1/4 to 6" Chuck Diam Compatibility, Steel Tongue & Groove Hard Lathe Top Jaws - 0.984" Wide x 2.638" Long x 1.634" High
Item #: 08570046
Brand: Bison
Model #: 7-883-406
Exact Tooling IR#: 04
Features and Benefits
Top jaws, also known as hard or step jaws, hold a workpiece during an operation. They are reversible and are bolted onto the master jaw.
| Product Specifications | |
|---|---|
| Jaw Type | Top Jaws |
| Jaw Interface Type | Tongue & Groove |
| Maximum Compatible Chuck Diameter (Inch) | 6 |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 6.00 |
| Material | Steel |
| Overall Width/Diameter (Decimal Inch) | 0.9840 |
| Overall Length (Decimal Inch) | 2.6380 |
| Minimum Compatible Chuck Diameter (Inch) | 6-1/4 |
| Number of Jaws | 4 |
| Overall Height (Decimal Inch) | 1.6340 |
| Fastener Size (Inch) | 3/8-16 |
| Distance Between Mount Hole Centers (Inch) | 1-1/2 |
