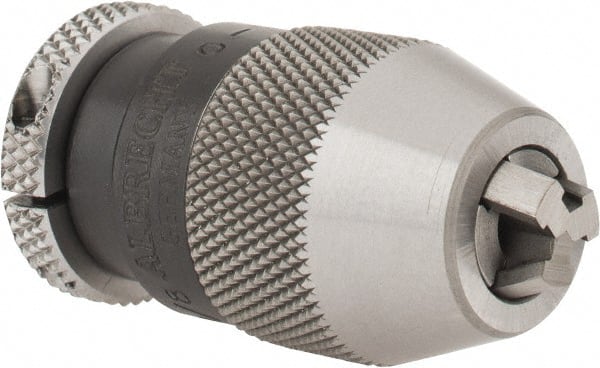

Albrecht - JT0, 1/64 to 1/8" Capacity, Steel Tapered Mount Drill Chuck - Keyless, 1" Sleeve Diam, 1-3/4" Open Length
Item #: 08591034
Brand: Albrecht
Model #: 70020
Exact Tooling IR#: 04
Features and Benefits
Tapered mount drill chucks have an internal Jacobs Taper (JT) that is press-fit onto a corresponding JT arbor (shank) or spindle.
Keyless chucks are engineered to quickly loosen and tighten a tool on the chuck collar of the drill, either by manual operation or when torque is applied. Rotating the chuck collar in a counterclockwise direction will loosen the tool.
Ball bearings are designed to reduce friction in the tightening mechanism and provide a better grip on the drill. They are used for heavy-duty machining and require a key for tightening or loosening.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Maximum Drill Chuck Capacity (mm) | 3.18 |
| Maximum Drill Chuck Capacity (Inch) | 1/8 |
| Minimum Drill Chuck Capacity (mm) | 0.00 |
| Minimum Drill Chuck Capacity (Inch) | 1/64 |
| Mount Type | Tapered Mount |
| Mounting Size | JT0 |
| Key Style | Keyless |
| Bearing Type | Ball Bearing |
| Material | Steel |
| Maximum RPM | 35000 |
| Closed Length (Decimal Inch) | 1.8800 |
| Open Length (Decimal Inch) | 1.7500 |
| Sleeve Diameter (Decimal Inch) | 1.0000 |
