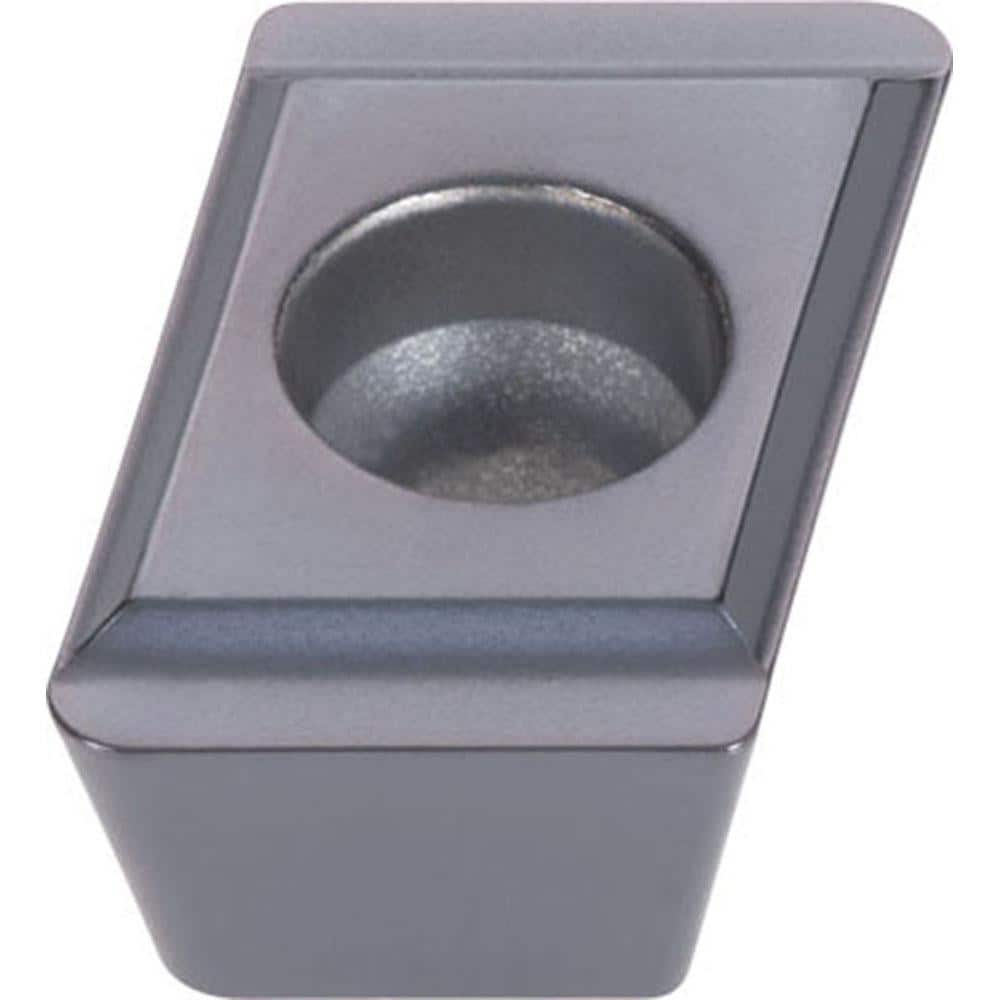

Indexable Drill Insert: FBH08HF AH8015, Carbide Coated, 80 ° Parallelogram
Item #: 08592339
Brand: Tungaloy
Model #: 4852441
Product Specifications
| Insert Style | FBH |
| Insert Size Code | 08 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AH8015 |
| Inscribed Circle (Decimal Inch) | 0.2950 |
| Cutting Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0314 |
| Chipbreaker | HF |
| Series | FBH |
| Coating Process | PVD |
| Shape | Parallelogram |
| Primary Workpiece Material | Hard Material; Stainless Steel; Super-alloys & Titanium |
| Included Angle Degree | 80.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1570 |
| Coating/Finish | Coated |
