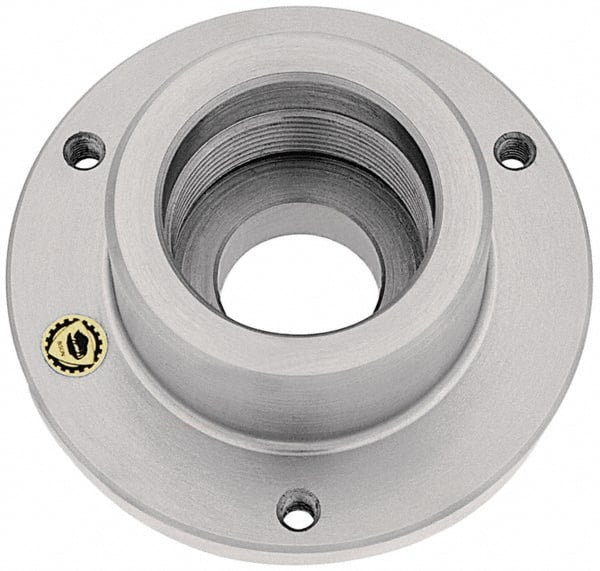

Bison - Adapter Back Plate for 12-1/2" Diam Self Centering Lathe Chucks - L-1 Mount, 4-1/8" Through Hole Diam, 11.26mm ID, 12.4" OD, 0.91" Flange Height, Steel
Item #: 08610792
Brand: Bison
Model #: 7-879-9123
Exact Tooling IR#: 04
Features and Benefits
Steel is made up of an iron and carbon. It offers high tensile strength and corrosion resistance, but may offer some vibration during an operation.
| Product Specifications | |
|---|---|
| Nominal Chuck Size | 12 |
| Spindle Nose Type | L Series |
| Mount | L-1 |
| Chuck Compatibility | Self-Centering Chucks |
| Through-Hole Diameter (Decimal Inch) | 4.1250 |
| Chuck Diameter Compatibility (Inch) | 12-1/2 |
| Inside Diameter (Decimal Inch) | 11.2600 |
| Outside Diameter (Decimal Inch) | 12.4000 |
| Flange Height (Decimal Inch) | 0.9100 |
| Material | Steel |
