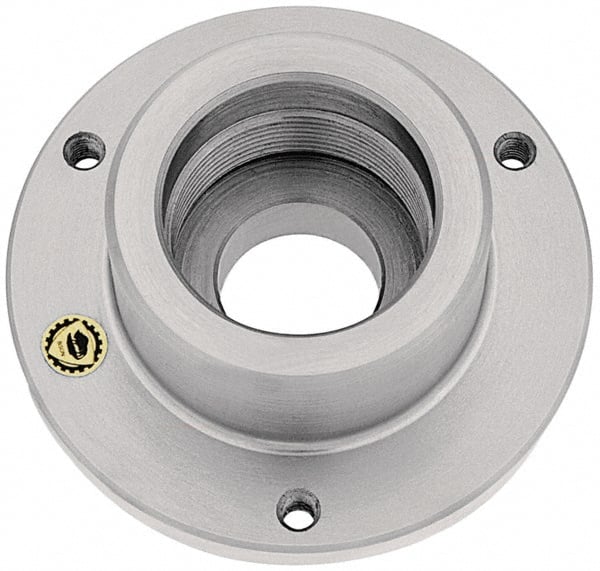

Bison - Adapter Back Plate for 8" Diam Self Centering Lathe Chucks - 2-1/4 - 8 Mount, 2.26" Through Hole Diam, 4.33mm ID, 8" OD, 0.59" Flange Height, Steel
Item #: 08610990
Brand: Bison
Model #: 7-876-083
Exact Tooling IR#: 04
Features and Benefits
Steel is made up of an iron and carbon. It offers high tensile strength and corrosion resistance, but may offer some vibration during an operation.
| Product Specifications | |
|---|---|
| Nominal Chuck Size | 8 |
| Spindle Nose Type | Threaded |
| Mount | 2-1/4 - 8 |
| Chuck Compatibility | Self-Centering Chucks |
| Through-Hole Diameter (Decimal Inch) | 2.2600 |
| Chuck Diameter Compatibility (Inch) | 8 |
| Inside Diameter (Decimal Inch) | 4.3300 |
| Outside Diameter (Inch) | 8 |
| Flange Height (Decimal Inch) | 0.5900 |
| Material | Steel |
