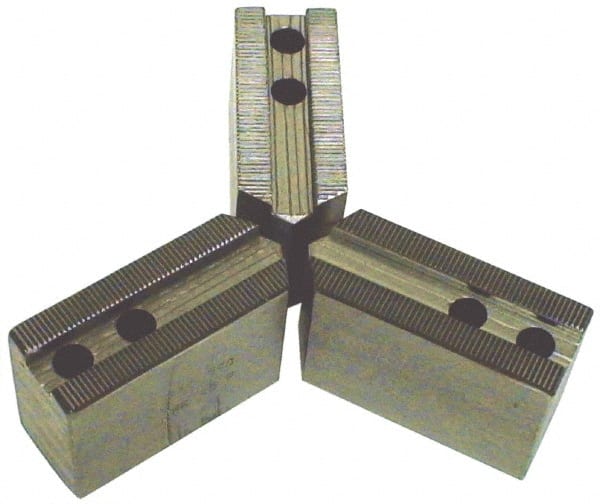

H & R Manufacturing - 4" Chuck Capacity, 1.5mm x 60° Serrated Attachment, Square Soft Lathe Chuck Jaw - 3 Jaws, Steel, 0.6" Btw Mount Hole Ctrs, 2" Long x 1" Wide x 1" High, 0.316" Groove, 5mm Fastener
Item #: 08615759
Brand: H & R Manufacturing
Model #: HR4K-1.0-P
Exact Tooling IR#: 04
Features and Benefits
Pointed jaws are blanks used for smaller part diameters, allowing closer contact than square end jaws.
| Product Specifications | |
|---|---|
| Jaw Type | Square |
| Material | Steel |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (Inch) | 4 |
| Minimum Compatible Chuck Diameter (Inch) | 4 |
| Overall Height (Inch) | 1 |
| Groove Width (Decimal Inch) | 0.3160 |
| Distance Between Mount Hole Centers (Decimal Inch) | 0.6000 |
| Jaw End Shape | Pointed |
| Fastener Size (mm) | 5 |
| Fastener Size (Inch) | 7/32 |
| Number of Jaws | 3 |
| Overall Width/Diameter (Inch) | 1 |
| Overall Length (Inch) | 2 |
| Material Grade | 1018 |
