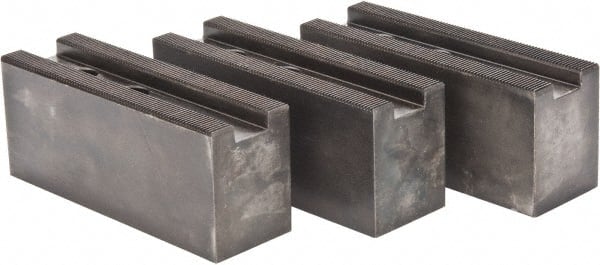

Value Collection - 10 to 11" Chuck Capacity, 1.5mm x 60° Serrated Attachment, Square Soft Lathe Chuck Jaw - 3 Jaws, Steel, 1.1811" Btw Mount Hole Ctrs, 4.33mm Long x 1.574" Wide x 1.574" High, 0.6299" Groove, 12mm Fastener
Item #: 08615908
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Square end jaws are blanks that can be machined to final size.
| Product Specifications | |
|---|---|
| Jaw Type | Square |
| Material | Steel |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (Inch) | 11 |
| Minimum Compatible Chuck Diameter (Inch) | 10 |
| Overall Height (mm) | 40.00 |
| Overall Height (Inch) | 2 |
| Overall Height (Decimal Inch) | 1.5740 |
| Groove Width (mm) | 16.00 |
| Groove Width (Decimal Inch) | 0.6299 |
| Distance Between Mount Hole Centers (mm) | 30.00 |
| Distance Between Mount Hole Centers (Decimal Inch) | 1.1811 |
| Jaw End Shape | Square |
| Fastener Size (mm) | 12 |
| Number of Jaws | 3 |
| Overall Width/Diameter (mm) | 40.00 |
| Overall Width/Diameter (Inch) | 1-1/2 |
| Overall Width/Diameter (Decimal Inch) | 1.5740 |
| Overall Length (Decimal Inch) | 4.3300 |
| Overall Length (mm) | 110.00 |
