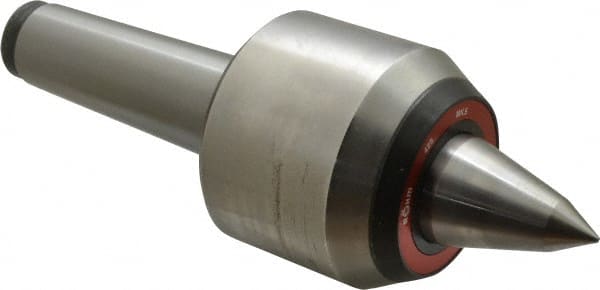

Rohm - MT5 Taper Shank, 3.74" Head Diam Live Center - 6,000 Max RPM, 3.32" Head Length, 1.65" Point Diam, 2.323" Point Len, 4,400 Lb Max Workpc, 11.01" OAL, Long Point
Item #: 08623670
Brand: Rohm
Model #: 303599
Exact Tooling IR#: 04
Features and Benefits
Long points are used for shaft work, parts with large diameters and where tool clearance is a priority.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT5 |
| Maximum Workpiece Weight (Lb.) | 4400.00 |
| Maximum Workpiece Weight (kg) | 2000.00 |
| Point Style | Long |
| Point Diameter (Decimal Inch) | 1.6500 |
| Point Length (mm) | 59.00 |
| Point Length (Decimal Inch) | 2.3230 |
| Accuracy (mm) | 0.0050 |
| Head Diameter (Decimal Inch) | 3.7400 |
| Head Length (Decimal Inch) | 3.3200 |
| Overall Length (Decimal Inch) | 11.0100 |
| Gage Line Diameter (mm) | 44.40 |
| Point to Gauge Line (mm) | 150.00 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 6000 |
| Material | Tool Steel |
| Carbide-Tipped | No |
