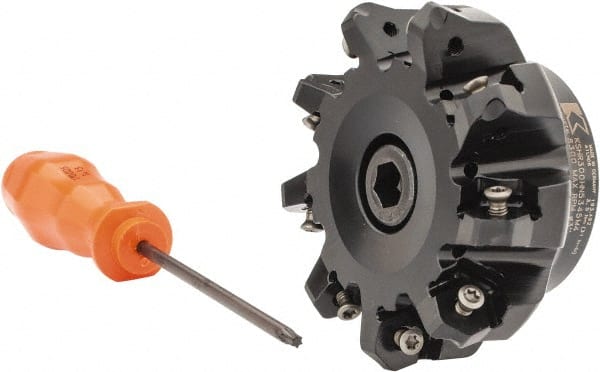

Kennametal - 3" Cut Diam, 1" Arbor Hole, 4.51mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 9 Inserts, HNGJ 535-GD Insert, Right Hand Cut, 9 Flutes, Through Coolant, Series KSHR
Item #: 08635070
Brand: Kennametal
Model #: 3326925
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3 |
| Cutting Diameter (mm) | 76.20 |
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Arbor Hole Diameter (mm) | 25.40 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 45 |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Insert Compatibility | HNGJ 535-GD |
| Series | KSHR |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 4.51 |
| Maximum Depth of Cut (Decimal Inch) | 0.1780 |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| Cutter Style | KSHR |
| Number of Flutes | 9 |
| Hub Diameter (Decimal Inch) | 2.0320 |
| Maximum Body Diameter (Decimal Inch) | 3.4330 |
| Maximum RPM | 8300 |
| Cutting Direction | Right Hand |
| Pitch | Medium |
| Complete Insert Compatibility | HNGJ 535ANENLD; HNGJ 535ANSNGD |
