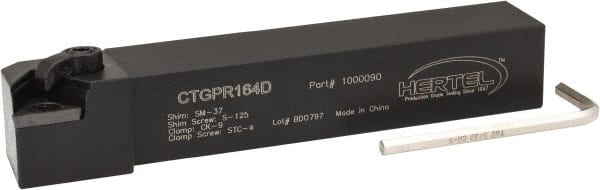

Hertel - CTGP, Right Hand Cut, 1" Shank Height x 1" Shank Width, Positive Rake Indexable Turning Toolholder - 6" OAL, TP.. 432 Insert Compatibility, Series Clamp Type
Item #: 08646069
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | CTGP |
| Rake | Positive |
| Rake Angle | 0 |
| Series | Clamp Type |
| Shank Width (Inch) | 1 |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | TP.. 432 |
| Multi-Use Tool | No |
| Back of Bar to Cutting Edge (Inch) | 1-1/4 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Head Length (Decimal Inch) | 1.2500 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Toolholder Material | Steel |
