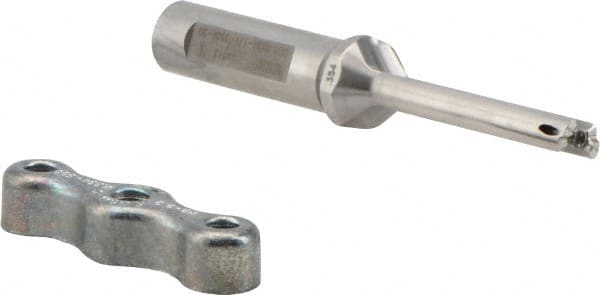

Iscar - 0.354 to 0.37" Diam, 5xD, 1.77" Max Depth, 1/2" Shank Diam, Replaceable Tip Drill - IDI Insert, 9 Seat Size, DCM Toolholder, Series ChamDrill
Item #: 08654691
Brand: Iscar
Model #: 3200647
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | ChamDrill |
| Minimum Drill Diameter (Decimal Inch) | 0.3540 |
| Maximum Drill Diameter (Decimal Inch) | 0.3700 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 1.7700 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Style | IDI |
| Insert Seat Size | 9 |
| Toolholder Style | DCM |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (Decimal Inch) | 2.2500 |
| Shank Length (Decimal Inch) | 1.7700 |
