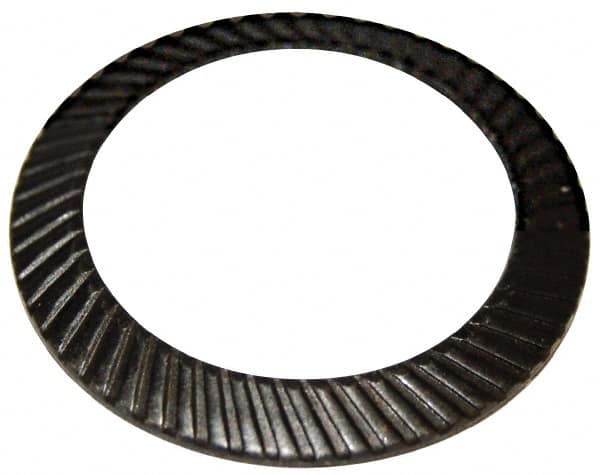

Gardner Spring - 29/32" ID, Steel, Belleville Disc Spring - 1.299" OD, 0.098" High, 0.059" Thick
Item #: 08661456
Brand: Gardner Spring
Model #: MS 22
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.9060 |
| Material | Steel |
| Outside Diameter (Decimal Inch) | 1.2990 |
| Thickness (Decimal Inch) | 0.0590 |
| Overall Height (Decimal Inch) | 0.0980 |
| Serration Type | Top Only |
