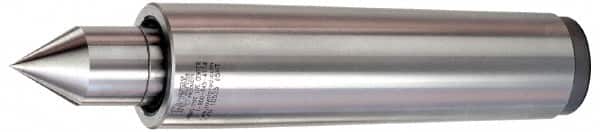

Royal Products - MT5 Taper Shank, 1-3/4" Head Diam 3,125 Lb Capacity Live Center - 4,500 Max RPM, 3/16" Head Length, 1.0938" Point Diam, 2" Point Len, 2,340 Lb Max Workpc, 8-1/16" OAL, Standard Point
Item #: 08696015
Brand: Royal Products
Model #: 10525
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT5 |
| Maximum Workpiece Weight (Lb.) | 2340.00 |
| Point Style | Standard |
| Point Diameter (Inch) | 1.0938 |
| Point Diameter (Decimal Inch) | 1.0938 |
| Point Length (Inch) | 2 |
| Point Length (Decimal Inch) | 2.0000 |
| Accuracy (Decimal Inch) | 0.000500 |
| Load Capacity (Lb.) | 3125.00 |
| Thrust Load (Lb.) | 785.00 |
| Radial Load (Lb.) | 2340.00 |
| Head Diameter (Decimal Inch) | 1.7480 |
| Head Length (Inch) | 3/16 |
| Taper Length (Inch) | 5-3/16 |
| Shank Length (Inch) | 6-1/16 |
| Shank Length (Decimal Inch) | 6.0600 |
| Overall Length (Inch) | 8-1/16 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 4500 |
| Material | Steel |
| Carbide-Tipped | No |
