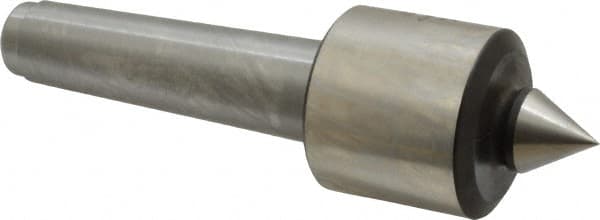

Royal Products - MT3 Taper Shank, 1.68" Head Diam 4,120 Lb Capacity Live Center - 5,000 Max RPM, 1.56" Head Length, 3/4" Point Diam, 7/8" Point Len, 390 Lb Max Workpc, 5-7/8" OAL, Standard Point
Item #: 08696973
Brand: Royal Products
Model #: 10853
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT3 |
| Maximum Workpiece Weight (Lb.) | 390.00 |
| Point Style | Standard |
| Point Diameter (Inch) | 3/4 |
| Point Diameter (Decimal Inch) | 0.7500 |
| Point Length (Inch) | 7/8 |
| Point Length (Decimal Inch) | 0.8750 |
| Accuracy (Decimal Inch) | 0.000000 |
| Load Capacity (Lb.) | 4120.00 |
| Thrust Load (Lb.) | 3730.00 |
| Radial Load (Lb.) | 390.00 |
| Head Diameter (Decimal Inch) | 1.6800 |
| Head Length (Decimal Inch) | 1.5600 |
| Shank Length (Decimal Inch) | 1.5600 |
| Overall Length (Inch) | 5-7/8 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 5000 |
| Material | Steel |
| Carbide-Tipped | No |
