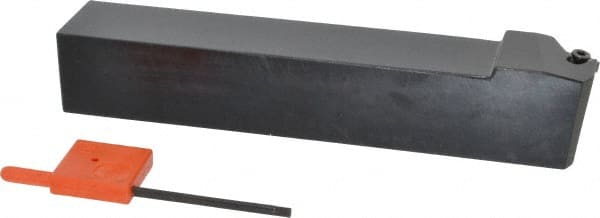

Carmex - External Thread, Right Hand Cut, 1" Shank Width x 1" Shank Height Indexable Threading Toolholder - 6" OAL, 16ER Insert Compatibility, SE Toolholder, Series SER
Item #: 08700056
Brand: Carmex
Model #: SER1000M16
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (Inch) | 6 |
| Insert Compatibility | 16ER |
| Series | SER |
| Toolholder Style | SE |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Insert Inscribed Circle (Inch) | 3/8 |
