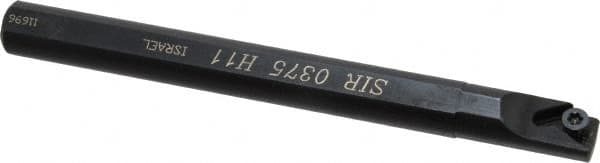

Carmex - Internal Thread, Right Hand Cut, 3/8" Shank Width x 3/8" Shank Height Indexable Threading Toolholder - 4" OAL, 11IR Insert Compatibility, SI Toolholder, Series SIR
Item #: 08700353
Brand: Carmex
Model #: SIR0375H11
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 0.3750 |
| Shank Width/Diameter (Inch) | 3/8 |
| Shank Height (Inch) | 3/8 |
| Shank Height (Decimal Inch) | 0.3750 |
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Length (Inch) | 4 |
| Insert Compatibility | 11IR |
| Series | SIR |
| Toolholder Style | SI |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.2800 |
| Center to Cutting Edge (Decimal Inch) | 0.2800 |
| Neck Diameter (Decimal Inch) | 0.3800 |
| Maximum Depth of Cut (Decimal Inch) | 0.4700 |
| Minimum Bore Diameter (Decimal Inch) | 0.4700 |
| Insert Inscribed Circle (Inch) | 1/4 |
