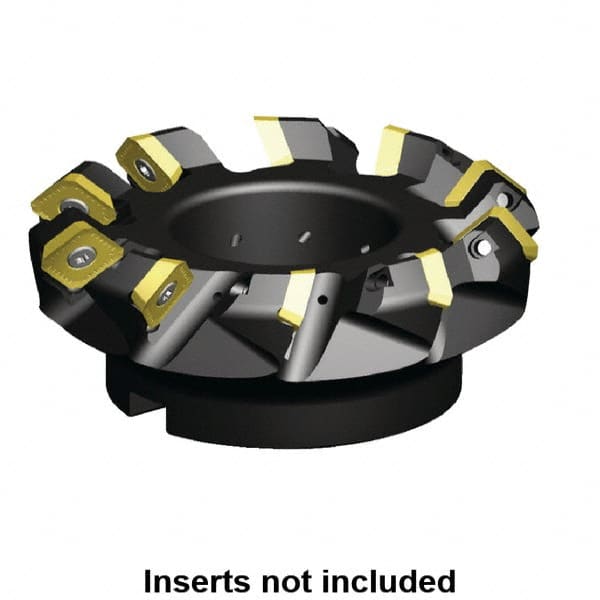

Kennametal - 12" Cut Diam, 2-1/2" Arbor Hole, 9.55mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 20 Inserts, SE.W 634... Insert, Right Hand Cut, 20 Flutes, Series KSSM
Item #: 08748725
Brand: Kennametal
Model #: 3029354
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 12 |
| Cutting Diameter (mm) | 325.45 |
| Cutting Diameter (Decimal Inch) | 12.8130 |
| Arbor Hole Diameter (mm) | 63.50 |
| Arbor Hole Diameter (Inch) | 2-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 2.5000 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 3.1496 |
| Overall Height (mm) | 80.00 |
| Insert Compatibility | SE.W 634... |
| Series | KSSM |
| Maximum Depth of Cut (mm) | 9.55 |
| Maximum Depth of Cut (Decimal Inch) | 0.3760 |
| Number of Cutter Inserts | 20 |
| Insert Holding Method | Screw |
| Cutter Style | KSSM |
| Number of Flutes | 20 |
| Hub Diameter (Decimal Inch) | 10.1250 |
| Hub Diameter (mm) | 257.18 |
| Maximum Body Diameter (Decimal Inch) | 12.6530 |
| Maximum RPM | 1580 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | SE.W 634AF.N9 |
