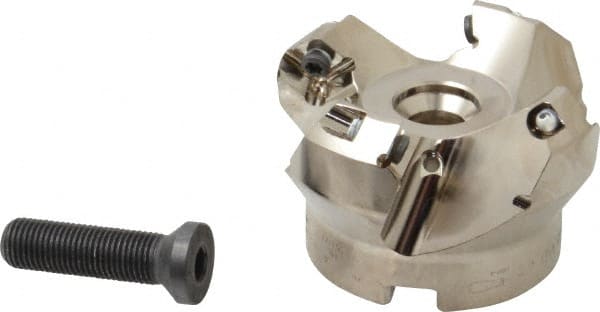

Seco - 1.97" Cut Diam, 3/4" Arbor Hole, 0.236" Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 4 Inserts, SE.X 1204 Insert, Right Hand Cut, 4 Flutes, Through Coolant, Series R220.53
Item #: 08796641
Brand: Seco
Model #: 03923
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.9700 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 1.5700 |
| Insert Compatibility | SE.X 1204 |
| Series | R220.53 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Cutter Style | R220.53 |
| Number of Flutes | 4 |
| Maximum Body Diameter (Decimal Inch) | 2.4400 |
| Maximum RPM | 14800 |
| Cutting Direction | Right Hand |
| Pitch | Normal |
