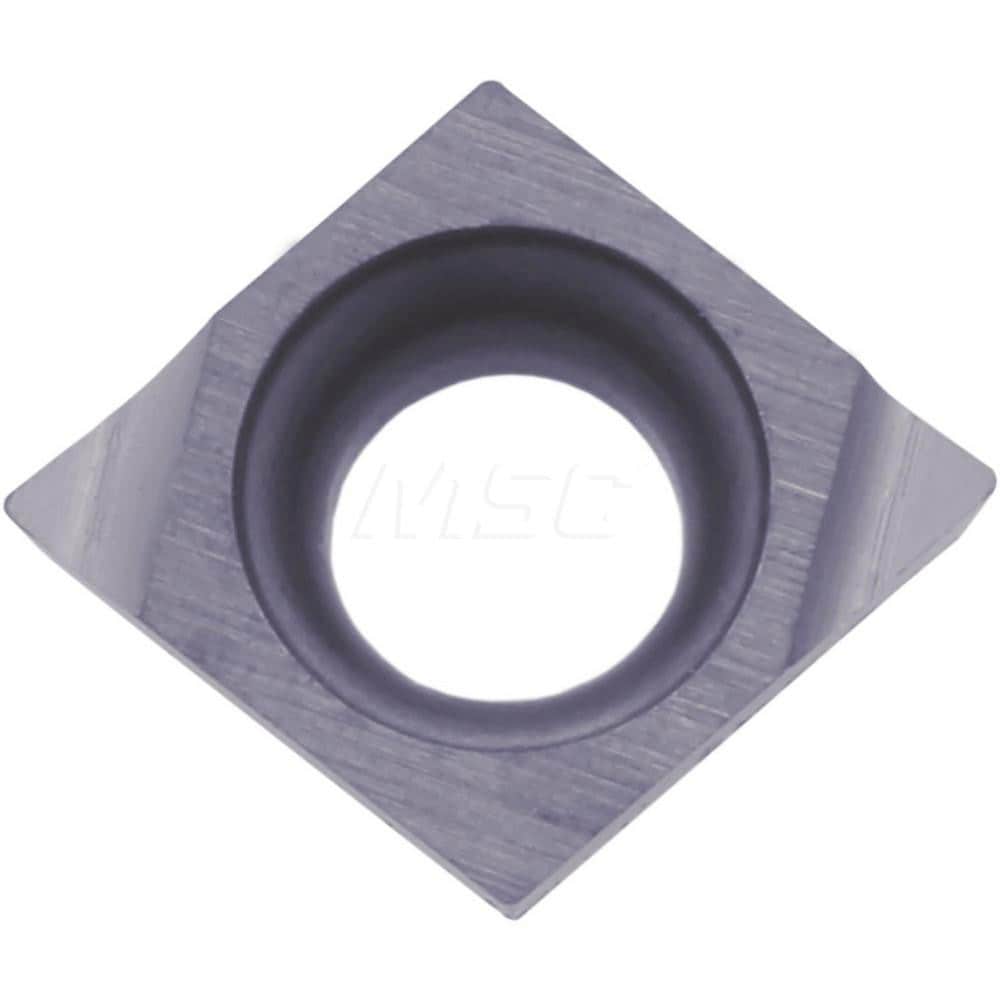

Boring Inserts; Insert Style: CCET; Insert Size Code: 1109013; Insert Material: Carbide; Material Grade: S20, S30, M40, M30; Manufacturer Grade: PR1535
Item #: 18251272
Brand: Kyocera
Model #: TLC01002
Product Specifications
| Insert Style | CCET |
| Insert Size Code | 1109013 |
| Insert Material | Carbide |
| Material Grade | S20; S30; M40; M30 |
| Manufacturer Grade | PR1535 |
| Inscribed Circle (Decimal Inch) | 0.1380 |
| Hole Diameter (Decimal Inch) | 0.0748 |
| Insert Holding Method | Screw |
| Insert Hand | Left Hand |
| Corner Radius (Decimal Inch) | 0.0020 |
| Relief Angle | 7 |
| Rake | Positive |
| Chipbreaker | F |
| Series | ISOI |
| Coating Process | PVD |
| Included Angle | 80 |
| Insert Shape | Diamond |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Stainless Steel; Superalloys |
| Primary Workpiece Material Code | S; M |
| Iso Code | CCET0301005ML-F |
| Rake Angle | 15 |
| Manufacturers Catalog Number | TLC01002 |
| Length (Decimal Inch - 4 Decimals) | 0.1380 |
| Width (Decimal Inch - 4 Decimals) | 0.138 |
| Coating/Finish | MEGACOAT NANO |
| UNSPSC Code | 23242107 |
| Maximum Depth of Cut (Decimal Inch) | 0.0460 |
