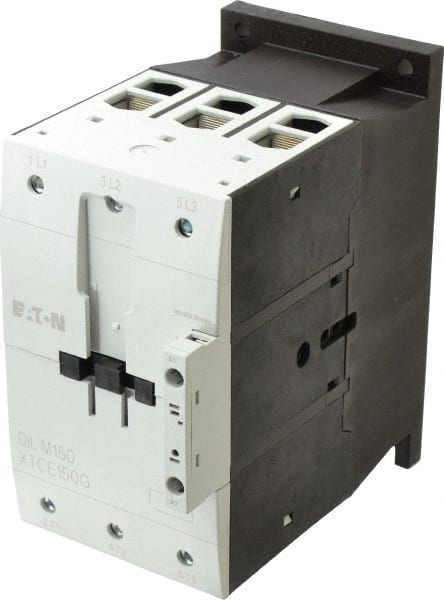

Eaton Cutler-Hammer - 3 Pole, 100 to 120 Coil VAC, 180 Amp, Nonreversible Open Enclosure IEC Contactor
Item #: 08805160
Brand: Eaton Cutler-Hammer
Model #: XTCE150G00A
Product Specifications
| Number of Poles | 3 |
| Coil Voltage | 100-120 VAC |
| Amperage | 180 |
| Action | NonReversible |
| Horsepower at 1 Phase | 15 @ 115 V; 25 @ 200 V; 30 @ 230 V |
| Horsepower at 3 Phase | 125 @ 460 V; 125 @ 575 V; 40 @ 200 V; 60 @ 230 V |
| Enclosure Type | Open |
| Overall Height (mm) | 170 |
| Overall Height (Decimal Inch) | 6.6900 |
| Overall Width (mm) | 111 |
| Overall Width (Decimal Inch) | 4.3700 |
| Overall Depth (mm) | 160 |
| Overall Depth (Decimal Inch) | 6.3000 |
| Inductive Load Rating (A) | 150 |
| Resistive Load Rating (A) | 190 |
| Standards Met | ATEX; CCC; CE Marked; CSA; EN/IEC 60947; RoHS Compliant; UL |
