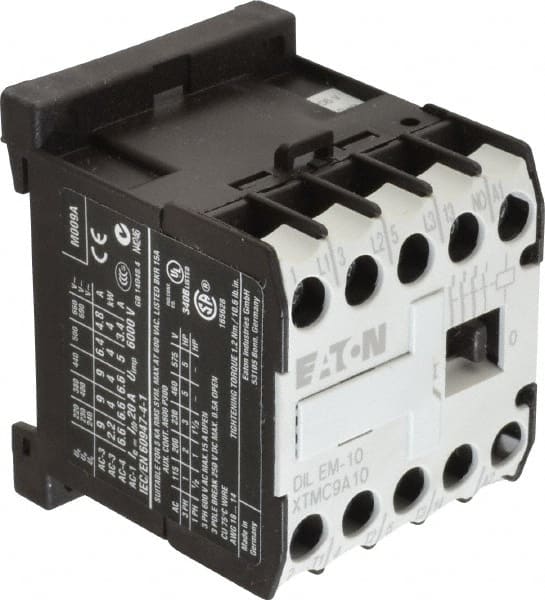

Eaton Cutler-Hammer - 3 Pole, 208 Coil VAC at 60 Hz, Nonreversible Open Enclosure IEC Contactor - 1 Phase hp: 0.5 at 115 V, 1 at 200 V, 1.5 at 230 V, 3 Phase hp: 2 at 200 V, 3 at 230 V, 5 at 460 V, 5 at 575 V, 8.80 Amp Inductive Load Rating Listed
Item #: 08805285
Brand: Eaton Cutler-Hammer
Model #: XTMC9A10E
Exact Tooling IR#: 04
Features and Benefits
Non-reversing contactors are designed with one phase line that connects to and runs voltage through the motor. The contactor is used to turn a motor on and off.
| Product Specifications | |
|---|---|
| Number of Poles | 3 |
| Coil Voltage | 208 VAC @ 60 Hz |
| Action | NonReversible |
| Horsepower at 1 Phase | 0.5 @ 115 V; 1 @ 200 V; 1.5 @ 230 V |
| Horsepower at 3 Phase | 2 @ 200 V; 3 @ 230 V; 5 @ 460 V; 5 @ 575 V |
| Auxiliary Contacts | NO |
| Enclosure Type | Open |
| Overall Height (mm) | 58 |
| Overall Height (Decimal Inch) | 2.2800 |
| Overall Width (mm) | 45 |
| Overall Width (Decimal Inch) | 1.7700 |
| Overall Depth (mm) | 83 |
| Overall Depth (Decimal Inch) | 3.2700 |
| Inductive Load Rating (A) | 8.80 |
| Resistive Load Rating (A) | 20 |
| Standards Met | ATEX; CCC; CE Marked; CSA; EN/IEC 60947; UL |
