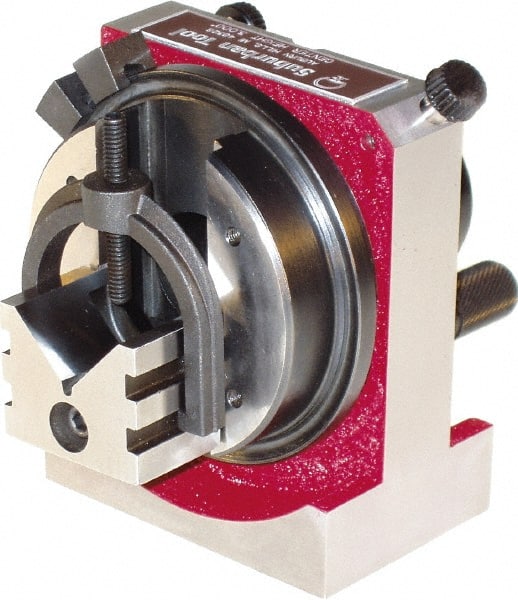

Suburban Tool - 48 Position, V-Block Grinding Fixture & Indexing Spacer - 3" High Centerline, 1-1/4" Spacer Through Hole, 6-15/16" OAL, 5" Overall Height
Item #: 08874851
Brand: Suburban Tool
Model #: PM-V2
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Spacer Type | V-Block Fixture |
| Includes Chuck | No |
| Number of Indexing Increments | 48 |
| Centerline Height (Inch) | 3 |
| Spacer Through Hole Size (Inch) | 1-1/4 |
| Indexing Accuracy (sec.) | 15.00 |
| Squareness - Base to Chuck (Decimal Inch) | 0.0002 |
| Parallelism Over Face (Decimal Inch) | 0.0002 |
| Spindle Runout (Decimal Inch) | 0.000100 |
| Overall Length (Inch) | 6-15/16 |
| Overall Height (Inch) | 5 |
| Additional Items Included | Fitted Wooden Case |
