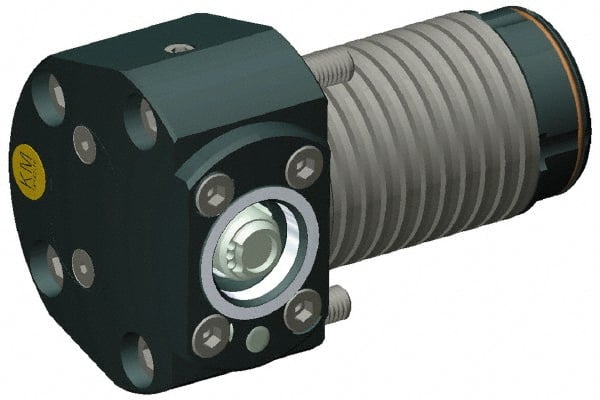

Kennametal - Neutral Cut, KM63 Modular Connection, Spring Pack Lathe Modular Clamping Unit - 85.01mm Square Shank Diam, 9.218" OAL, Through Coolant, Series NACA-DS Axial Disc Spring Unit
Item #: 09014531
Brand: Kennametal
Model #: 1021524
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Clamping Unit Type | Spring Pack |
| Series Code | NACA-DS Axial Disc Spring Unit |
| Connection Size | KM63 |
| Cutting Direction | Neutral |
| Shank Diameter (mm) | 85.01 |
| Shank Diameter (Decimal Inch) | 3.3470 |
| Through Coolant | Yes |
| Head Height (mm) | 139.95 |
| Head Height (Decimal Inch) | 5.5100 |
| Overall Length (mm) | 234.14 |
| Overall Length (Decimal Inch) | 9.2180 |
| Head Length (Decimal Inch) | 3.3080 |
| Head Length (mm) | 84.02 |
| Shank Length (mm) | 150.11 |
| Shank Length (Decimal Inch) | 5.9100 |
