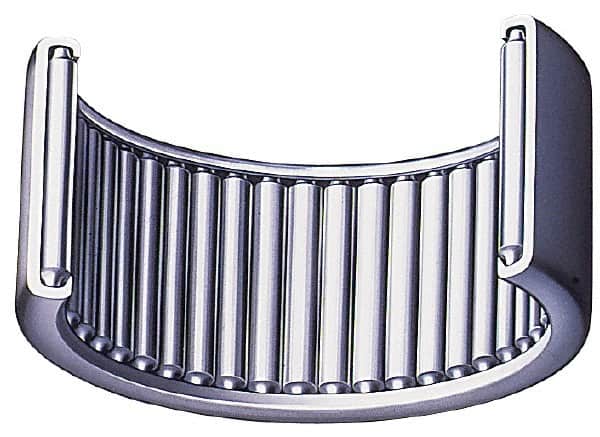

IKO - 0.866" Bore Diam, 3,000 Lb. Dynamic Capacity, 22 x 28 x 20mm, Caged, Double Seal, Open End, Shell Needle Roller Bearing - 1.102" Outside Diam, 0.787" Wide
Item #: 09016221
Brand: IKO
Model #: TLA2220UU
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | 22X28X20MM CAGED/DS SHELL-NEEDLE ROLLER-OPEN |
| Bore Diameter (Decimal Inch) | 0.8660 |
| Bore Diameter (mm) | 22.000 |
| Outside Diameter (Decimal Inch) | 1.1020 |
| Outside Diameter (mm) | 28.0000 |
| Width (Decimal Inch) | 0.7870 |
| Width (mm) | 20.00 |
| Dynamic Load Capacity (Pounds) | 3000 |
| Style. | Shell Needle |
