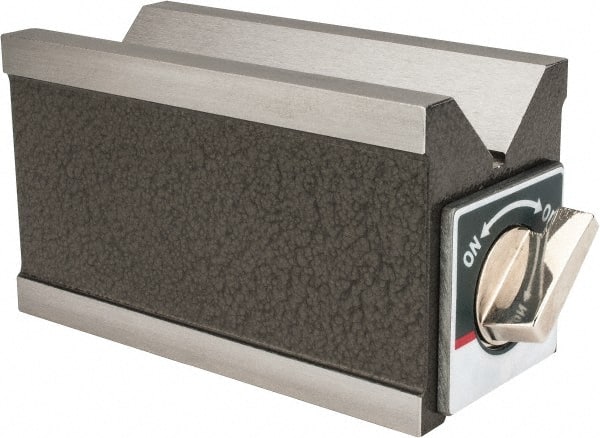

Value Collection - 1-3/4" Max Capacity, 90° Angle, V-Block - 124mm Long x 60mm Wide x 2-7/8" High, Sold as Individual
Item #: 09041542
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
V-blocks are used for holding cylindrical components for detecting and inspecting. They are designed with a 90-degree channel rotated 45-degrees from the sides, forming a V-shaped channel in the top. V-Blocks are commonly available in pairs. Some come with magnets for magnetic workholding applications.
| Product Specifications | |
|---|---|
| Type | V-Block |
| Sold As | Individual |
| Overall Length (mm) | 124.00 |
| Overall Length (Decimal Inch) | 4.8819 |
| Overall Width (mm) | 60.00 |
| Overall Width (Decimal Inch) | 2.3622 |
| Overall Height (mm) | 73.03 |
| Overall Height (Inch) | 2-7/8 |
| V Angle | 90.00 |
| Maximum Capacity of V (Inch) | 1-3/4 |
| Magnetic | Yes |
