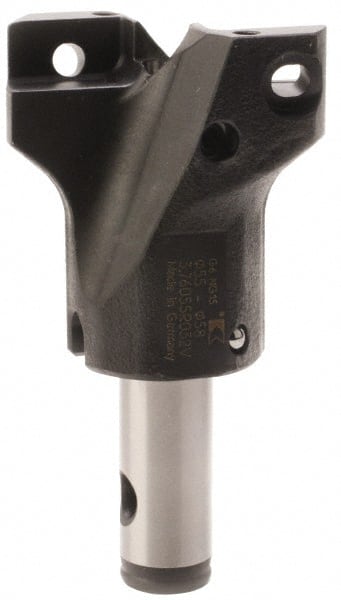

Kennametal - Series HTS DFT, Head Connection 40, 122mm Max Diam Pilot Drill Head - B510S20000 Pilot Drill, 20mm Pilot Drill Diam, 4 Nonpilot Inserts, 90mm Head Length
Item #: 09094392
Brand: Kennametal
Model #: 1245756
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | HTS DFT |
| Head Connection Size | 40 |
| Pilot Type | Pilot Drill |
| Maximum Drill Diameter (mm) | 122.00 |
| Maximum Drill Diameter (Decimal Inch) | 4.8031 |
| Pilot Drill Diameter (mm) | 20.00 |
| Pilot Drill Diameter (Decimal Inch) | 0.7874 |
| Number of Non-Pilot Inserts | 4 |
| Pilot Drill Style | B510S20000 |
| Head Length (mm) | 90.00 |
| Head Length (Decimal Inch) | 3.5433 |
| Drill Head Style | 3.76 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Cartridge |
| Overall Length (mm) | 145.00 |
| Overall Length (Decimal Inch) | 5.7087 |
| Back of Head Diameter (mm) | 71.00 |
| Back of Head Diameter (Decimal Inch) | 2.7953 |
| Includes | Adjusting Screw; Clamping screw |
