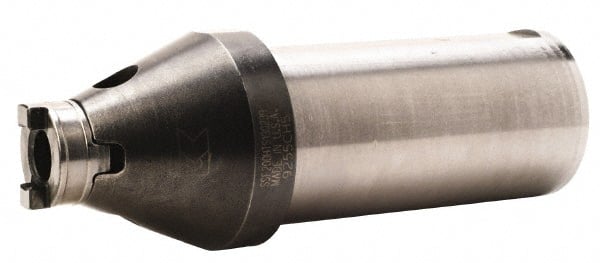

Kennametal - Series HTS, Head Connection 22, 2" Diam Weldon Flat Shank, Drill Body - 23.72" Body Length to Flange, SSF Toolholder, 40mm Nose Diam, 754.95mm OAL, Through Coolant
Item #: 09094699
Brand: Kennametal
Model #: 1801554
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | HTS |
| Head Connection Size | 22 |
| Shank Diameter (mm) | 50.80 |
| Shank Diameter (Inch) | 2 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Drill Body Length to Flange (Decimal Inch) | 23.7200 |
| Toolholder Style | SSF |
| Nose Diameter (mm) | 40.00 |
| Nose Diameter (Decimal Inch) | 1.5700 |
| Overall Length (mm) | 754.95 |
| Overall Length (Decimal Inch) | 29.7200 |
| Gage Length (mm) | 653.35 |
| Gage Length (Decimal Inch) | 25.7200 |
| Shank Type | Weldon Flat |
| Shank Length (Decimal Inch) | 4.0000 |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Type | NPT |
| Coolant Hole Thread Size (Inch) | 1/8-27 |
| Number of Shank Flats | 2 |
| Includes | Clamping screw; Drive Ring; Side Pipe Plug |
