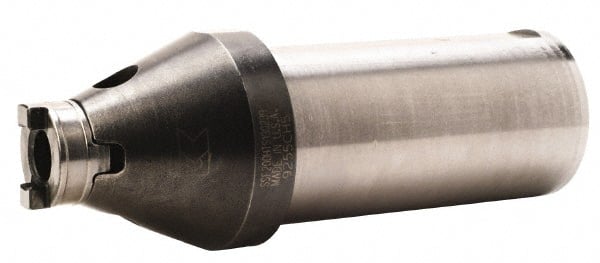

Kennametal - Series HTS, Head Connection 27, 2" Diam Weldon Flat Shank, Drill Body - 9.22" Body Length to Flange, SSF Toolholder, 48mm Nose Diam, 386.65mm OAL, Through Coolant
Item #: 09094715
Brand: Kennametal
Model #: 1801556
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | HTS |
| Head Connection Size | 27 |
| Shank Diameter (mm) | 50.80 |
| Shank Diameter (Inch) | 2 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Drill Body Length to Flange (Decimal Inch) | 9.2200 |
| Toolholder Style | SSF |
| Nose Diameter (mm) | 48.00 |
| Nose Diameter (Decimal Inch) | 1.8900 |
| Overall Length (mm) | 386.65 |
| Overall Length (Decimal Inch) | 15.2200 |
| Gage Length (mm) | 285.05 |
| Gage Length (Decimal Inch) | 11.2200 |
| Shank Type | Weldon Flat |
| Shank Length (Decimal Inch) | 4.0000 |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Type | NPT |
| Coolant Hole Thread Size (Inch) | 1/8-27 |
| Number of Shank Flats | 2 |
| Includes | Clamping screw; Drive Ring; Side Pipe Plug |
