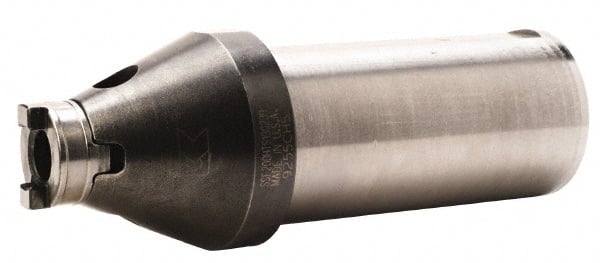

Kennametal - Series HTS, Head Connection 50, 3" Diam Weldon Flat Shank, Drill Body - 18.55" Body Length to Flange, SSF Toolholder, 80mm Nose Diam, 651mm OAL, Through Coolant
Item #: 09094848
Brand: Kennametal
Model #: 1801580
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | HTS |
| Head Connection Size | 50 |
| Shank Diameter (mm) | 76.20 |
| Shank Diameter (Inch) | 3 |
| Shank Diameter (Decimal Inch) | 3.0000 |
| Drill Body Length to Flange (Decimal Inch) | 18.5500 |
| Toolholder Style | SSF |
| Nose Diameter (mm) | 80.00 |
| Nose Diameter (Decimal Inch) | 3.1500 |
| Overall Length (mm) | 651.00 |
| Overall Length (Decimal Inch) | 25.6300 |
| Gage Length (mm) | 536.70 |
| Gage Length (Decimal Inch) | 21.1300 |
| Shank Type | Weldon Flat |
| Shank Length (Decimal Inch) | 4.5000 |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Type | NPT |
| Coolant Hole Thread Size (Inch) | 1/8-27 |
| Number of Shank Flats | 2 |
| Includes | Clamping screw; Drive Ring; Side Pipe Plug |
