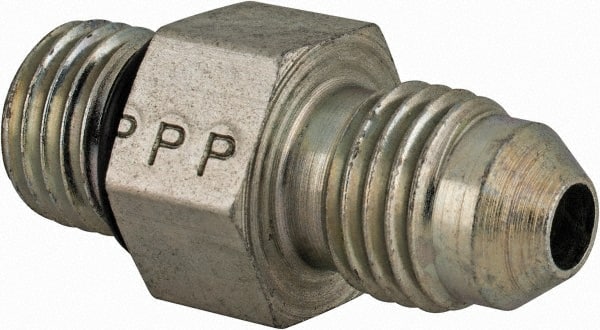

Parker - 1/4" Tube OD, 37° Steel Flared Tube Straight Thread Connector - 7/16 UNF, Flare x SAE-ORB Ends
Item #: 09105701
Brand: Parker
Model #: 4 F5OX-S
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Straight Thread Connector |
| Flared Degrees | 37 |
| End Connections | Flare x SAE-ORB |
| Thread Size | 7/16 |
| Tube Outside Diameter (Inch) | 1/4 |
| Thread Type | UNF |
| Material | Steel |
| Max Working Pressure Dynamic | 7500 |
| Hex Size (Inch) | 9/16 |
| PSC Code | 4720 |
