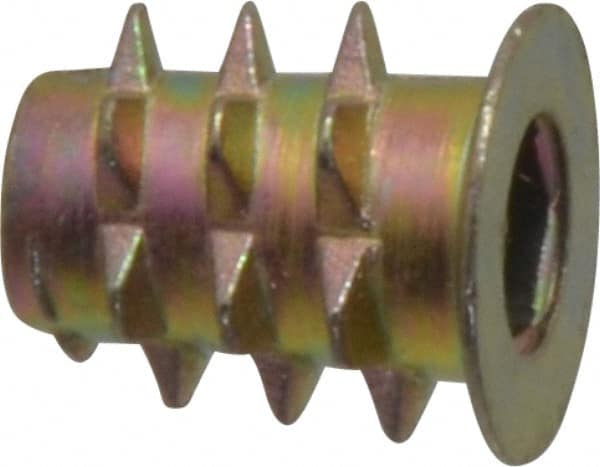

E-Z LOK - #10-32, Zinc Alloy Flanged Hex Drive Insert - 9/32" Drill, 0.2756" Hole Diam, 0.512" Long, 1/2" Min Grip, M5 Hex
Item #: 09142456
Brand: E-Z LOK
Model #: 901032-13
Exact Tooling IR#: 04
Features and Benefits
Flanged hex drive types have a weight-bearing lip, or flange, along the top of the insert to anchor it in place.
Zinc alloy is a tough, strong and stable material. It is used on steel for decorative purposes and to resist corrosion.
| Product Specifications | |
|---|---|
| Type | Flanged Hex Drive |
| System of Measurement | Metric |
| For Material Type | Wood |
| Material | Zinc Alloy |
| Thread Size | #10-32 |
| Overall Length (mm) | 13.00 |
| Overall Length (Decimal Inch) | 0.5120 |
| Insert Diameter (Decimal Inch) | 0.4510 |
| Hole Diameter (Decimal Inch) | 0.2756 |
| Hole Diameter (mm) | 7.00 |
| Hex Size (mm) | M5 |
| Minimum Grip (Decimal Inch) | 0.5000 |
| Head Diameter (Decimal Inch) | 0.4330 |
| Head Height (Decimal Inch) | 0.0210 |
| Drill Size (Inch) | 9/32 |
| Thread Standard | UNF |
